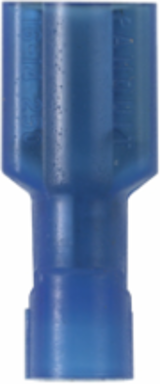

Panduit EDNF14-250FIB-Q StrongHold™ EDNF14-250FIB-Q Loose Piece Disconnect Terminal

StrongHold™ EDNF14-250FIB-Q Loose Piece Disconnect Terminal
  • MPN: EDNF14-250FIB-Q
  • UPC: 613056366244
  • PPN: PAN-EDNF14-250FIB-Q
  • UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.64/ EA

Description

StrongHold™ Female Disconnect, nylon fully insulated, 16 - 14 AWG, .250 X .032 tab size.

Specifications

Maximum Voltage
600 V (0.6 kV)
Wire Size
16-14 AWG
Maximum Operating Temperature
125 °C (257 °F)
Overall Width
0.35 in (8.9 mm)
Disconnect Type
Female Disconnect
Insulation Material
Nylon
Base Material
Brass
Minimum Metric Conductor Size
1.5 mm²
Standards Met
UL, CSA
Color Code
Blue
Copper Conductor Size16-14 AWG
Maximum Wire Insulation Diameter0.16 in (4.1 mm)
Overall Length0.84 in (21.3 mm)
Tab Size0.250 x 0.032 in (6.3 mm)
Insulation TypeFully Insulated
Seam TypeButted
FinishTin-Plated
Maximum Metric Conductor Size2.5 mm²
RoHS ComplianceCompliant
Country of OriginMexico
