Panduit C1LG6 Panduct® C1LG6 Flush Duct Cover
- MPN: C1LG6
- UPC: 074983230402
- PPN: PAN-C1LG6
- UNSPSC: 39131712
CAD
$0.91
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

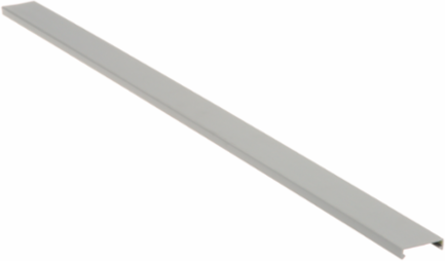

The C1LG6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 1.25" (8.9 mm x 31.8 mm) and 6' (1.83 m) long. Color Light Gray.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Mount Method | Snap-On |
| Note | Base and Cover Sold Separately. |
| Sub Brand | Panduct® |
| Overall Length (ft.) | 6 |
| Product Type | Flushed Duct Cover |
| For Use With | Type G, Type F, Type D and Type FS Duct Base |
| Application | Cover for Wiring Duct |
| Overall Length (m) | 1.83 |
| Material Properties | Lead-Free |
| Any Reason Not to Sell | N |
|---|---|
| Material | PVC |
| Overall Height (In.) | 0.35 |
| Wiring Duct Style | Flush Cover |
| Overall Width (In.) | 1.25 |
| Color | Light Gray |
| Overall Width (mm) | 31.8 |
| Compatible Duct Width (In.) | 1 |
| Compatible Duct Width (mm) | 25.4 |
| Overall Height (mm) | 8.9 |
Packaging Details
| UPC | 07498323040 |
|---|---|
| Standard Package Volume Ft3 | 0.0213 |
| Std Package Height In | .1 |
| Std Package Length In | 72 |
| Std Package Width In | 1 |
| Std. Pkg. UOM | Foot |
| Std. Pkg. Qty. | 6 |
| Standard Carton Volume Ft3 | 0.4264 |
| Std Carton Height In | 2.3 |
| Std Carton Length In | 72.8 |
| Std Carton Width In | 4.4 |
| Std Ctn Qty | 120 |
| EAN | 00074983230402 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 120.0000 |
| Pallet Volume | 30.697333 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983230402 |
|---|---|
| Standard Package Weight Pounds | 0.4350 |
| Std Package Height MM | 2.54 |
| Std Package Length MM | 1828.8 |
| Std Package Width MM | 25.4 |
| UOM EA PK | PK |
| GTIN Carton | 50074983230407 |
| Standard Carton Weight Pounds | 8.7000 |
| Std Carton Height MM | 58.42 |
| Std Carton Length MM | 1849.12 |
| Std Carton Width MM | 111.76 |
| Min. Order UOM | Foot |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 8,640 |
| Pallet Weight | 626.4000 |
