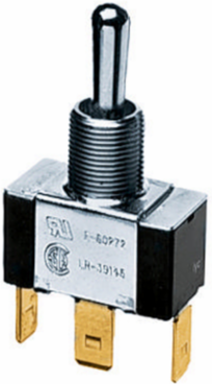

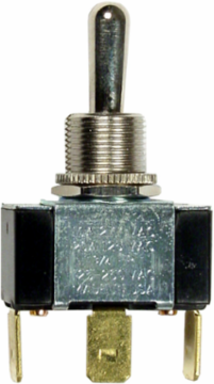

Hubbell Wiring Device-Kellems HBL123SP Commercial Grade Panel Mount Bat Handle Switch, SPDT 10A 250V, 2.15 Inch x 0.56 Inch x 1.12 Inch
- MPN: HBL123SP
- UPC: 783585016788
- PPN: HBL-HBL123SP
- UNSPSC: 39122239
CAD
$16.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw Center Off, 10A 250V/10A 125V, Spade
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 2.15 in x 0.56 in x 1.12 in
- Horsepower - Maximum
- 0.75
- Length
- 2.15 in
- Performance
- Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
- Number of Poles
- Single Pole
- Size
- 2.15 in x 0.56 in x 1.12 in
- Type
- General Purpose
- Weight
- 0.15 lb.
- Engineering Drawing 1 Display Text
- HBL123SP AutoCAD Drawing
- Number Of Poles
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 123SP
- Series
- Single Pole/Double Throw
- BOX SIZE
- 3.300x4.800x2.900 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585016788
- Case Weight
- 5.900 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating10/20 A
Height1.12 in
Industry Standard(s)UL Listed
Mounting MethodPanel Mount
Amperage Rating10/20 A
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating250/125 VAC
Width0.56 in
ActionSPDT
StyleSpade Terminal
Description - InvoicePANEL SW, SPDT, SPADE TERM, 3 POS
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A240
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code3359315102
Certifications
- EU RoHS Indicator
- No
