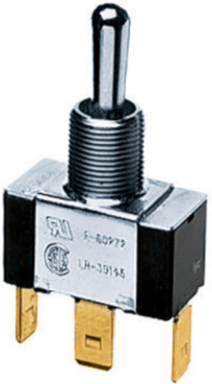

Hubbell Wiring Device-Kellems HBL123SPMM Momentary Single Pole Double Throw Panel Mount Switch, 10A 250V, 2.15 Inch x 0.56 Inch x 1.12 Inch
- MPN: HBL123SPMM
- UPC: 783585016795
- PPN: HBL-HBL123SPMM
- UNSPSC: 39122239
CAD
$21.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Single Pole Double Throw Center Off, 10A 250V/10A
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 2.15 in x 0.56 in x 1.12 in
- Horsepower - Maximum
- 0.75
- Length
- 2.15 in
- Performance
- Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
- Contact Configuration
- Momentary
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 250/125 VAC
- Width
- 0.56 in
- Action
- SPDT
- Style
- Spade Terminal
- Description - Invoice
- PANEL SW, SPDT, MOMENTARY, SPADE TERM
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 100 EA
- Lowest Level UOM
- Each
Current / Amperage Rating10/20 A
Height1.12 in
Industry Standard(s)UL Listed
Mounting MethodPanel Mount
Amperage Rating10/20 A
Number of PolesSingle Pole
Size2.15 in x 0.56 in x 1.12 in
TypeMomentary
Weight0.1 lb.
Engineering Drawing 1 Display TextHBL123SPMM AutoCAD Drawing
Number Of PolesSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number123SPMM
SeriesSingle Pole/Double Throw
BOX SIZE0.100x1.870x8.000 (in)
Carton - Number of Sub Packs100
Carton - SCC-14 Next Lower Level Sub Pack783585016795
Each - Pack DescriptionEach
NAICS Code3359315102
Certifications
- EU RoHS Indicator
- No
