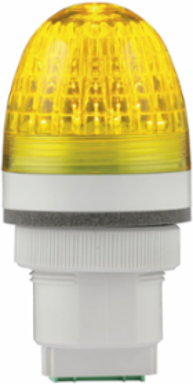

Federal Signal PMLST-012-024Y Panel Mount LED Light, Steady, UL and cUL, 12-24VAC/DC, Yellow
- MPN: PMLST-012-024Y
- UPC: 782979237532
- PPN: FDS-PMLST-012-024Y
- UNSPSC: 39111706
CAD
$110.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PMLST allows for a single steady light effect, while model PMLMP offers three different light effects (steady, flashing, or simulated strobe) controllable via independent electric contacts.These models offer a self-extinguishing PC body that protects against vibrations, dust, and atmospheric elements.The device can be panel mounted through a 1.18-inch hole and secured with the provided locking ring.
Features
- Available in 24 Vdc and 120 Vac
- Capable of producing 75-77 dBA at 10 ft (85-87 dBA at 1 m)
- Indoor use only
- Type 4X, IP66 enclosure
- CSA Certified
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.09 lbs
- Certification Listing
- CE, UL, cUL
- Flash Pattern Type
- Steady
- Lens Color
- Yellow
- Operating Current Amps
- 0.025 @ 12VDC/0.025 @ 24VDC/0.030 @ 12VAC/0.045 @ 24VAC
- Operating Voltage
- 12-24 Vac/dc
- Visual Signals Lens Color
- Yellow
- Environmental Rating
- Ordinary Location
- Lead Time
- In Stock - Ships in 2 Bus Days
Height3.26 in
Body ColorGray
Diameter1.61 in (40.894 mm)
AvailabilityIn Stock - Ships in 2 Bus Days
Mount TypePanel
Operating Temp.-22˚ to +140˚F (-30˚ to +60˚C)
Visual Signals Flash PatternSteady
Visual Signals Operating Voltage12-24VAC/DC
Enclosure RatingIP65, IP69K, Type 3R
Product Life Cycle StatusCompleted
