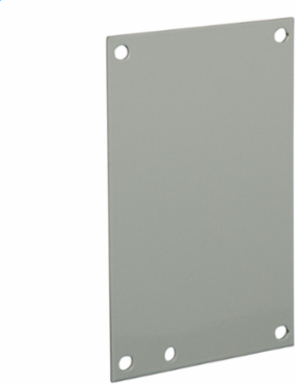

Wiegmann N1P1212 Panel N1C/RHC/Wagie 10.25X10.25 Carbon Steel - White
- MPN: N1P1212
- UPC: 786725341306
- PPN: HBL-N1P1212
- UNSPSC: 39121302
CAD
$36.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Panel N1C/RHC/Wagie 10.25X10.25 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- 14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Small (NIC), NEMA 3R Small (RHC), NEMA 12 WAGIE. Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Smooth Hybrid Paint
- Special Features
- 14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Small (NIC), NEMA 3R Small (RHC), NEMA 12 WAGIE. Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
- Stock Indicator
- S - Shelf Stock
- Actual Height
- 10.25 in
- Color
- White
- Weight
- 2.2 lb.
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Finish Type
- Smooth Hybrid Paint
- Shape
- Rectangle
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Construction
- Non-Flanged
- Series
- N1P Series
- BOX SIZE
- 0.750x10.950x10.850 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725341306
- Pallet Height
- 27.750 in
- Pallet Weight
- 945.240 lb.
- NAICS Code
- 3359326101
MountingMounting Holes
ARRA CompliantContact Manufacturer
Country of OriginMexico
Actual Width10.25 in
Height10 in
Width10 in
ApplicationUsed for mounting lightweight control components.
Mounting TypeMounting Holes
TypeBack Panel
Description - InvoicePANEL,CS,10 1/4" X 10 1/4"
Harmonization Code7326909999
Lead Time14 wk
Order Multiple1 EA
Sub Class CodeP05P078
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
