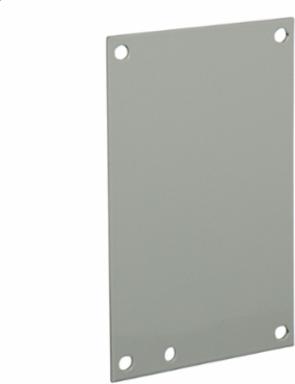

Wiegmann N1P0808 Panel N1C/RHC/Wagie 6.25X6.25 Carbon Steel - White
- MPN: N1P0808
- UPC: 786725341108
- PPN: HBL-N1P0808
- UNSPSC: 39121302
CAD
$27.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Panel N1C/RHC/Wagie 6.25X6.25 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- 14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Small (NIC), NEMA 3R Small (RHC), NEMA 12 WAGIE. Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 6.25 in
- Color
- White
- Height
- 6 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 0.9 lb.
- Finish Type
- Smooth Hybrid Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- PANEL,CS,6 1/4" X 6 1/4"
- Harmonization Code
- 7326908688
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Non-Flanged
- Series
- N1P Series
- BOX SIZE
- 0.650x6.850x6.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725341108
- Pallet Height
- 27.250 in
- Pallet Weight
- 1159.750 lb.
- NAICS Code
- 3359326101
Actual Height6.25 in
ApplicationUsed for mounting lightweight control components.
FinishSmooth Hybrid Paint
MountingMounting Holes
Special Features14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Small (NIC), NEMA 3R Small (RHC), NEMA 12 WAGIE. Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Width6 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P078
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
