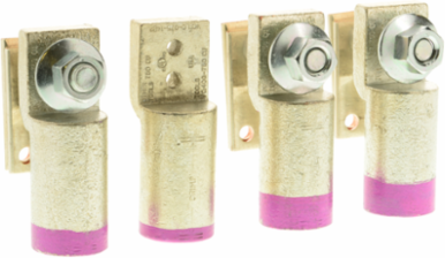

Square D NFALV4 NF Panelboard Compression Lug Kit, 400A, Aluminum, AWG 2/0 to 500 kcmil
- MPN: NFALV4
- UPC: 785901539124
- PPN: SCH-NFALV4
CAD
$437.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This compression lug kit is for the main lugs of the NF interior. These aluminum compression lugs are rated at 400A. Each compression lug will accept two 2/0 AWG to 500kcmil wires.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Line Rated Current
- 400-400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM

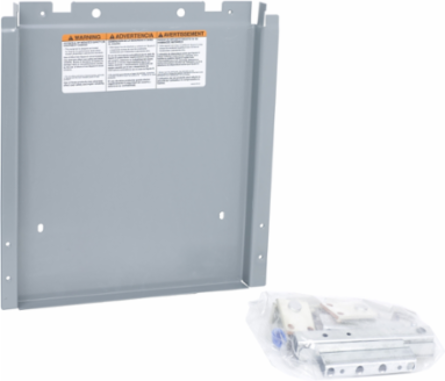

- Provided Equipment
- screw set 1, lug pad 3, nut 3, lug 8, lug pad doublers 3
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- AWG 2/0...500 kcmil 2 aluminium/copper
- Material
- aluminium
- Product Or Component Type
- compression lug
- Returnability
- Yes
- Tightening Torque
- 28.2-39.5 N.m 67.43-253.4 mm² (AWG 2/0...500 kcmil)
- Package Weight(Lbs)
- 3.175 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Provided Equipment
- screw set 1, lug pad 3, nut 3, lug 8, lug pad doublers 3
Product Or Component Typecompression lug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
