Square D NFALM2 Mechanical Lug Kit for NF Panelboards, 250A, Accepts AWG 6-350 kcmil
Square D NFALM2 Mechanical Lug Kit for NF Panelboards, 250A, Accepts AWG 6-350 kcmil
- MPN: NFALM2
- UPC: 785901699316
- PPN: SCH-NFALM2
- UNSPSC: 39121112
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$300.57/ EA
Description

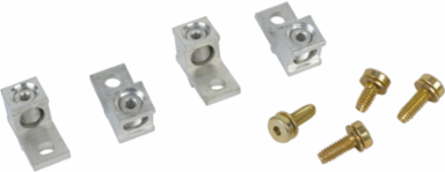

NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This standard mechanical lug kit is for the main lugs of the NF interior. These aluminum mechanical lugs are rated at 250A. Each lug will accept one 6 AWG to 350kcmil copper or aluminum wire.
Features
- NQ and NF offer a wide selection of accessories and replacement parts
- Factory assembled options allow design flexibility and maximizes job productivity
- Ready to assemble kits and accessories for on-site design changes
- Easy to modify or extend the use of the panelboard
Specifications
Complementary Attributes
- Line Rated Current
- 250-250 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- H And D Domain
- Safety
- H And D Enrichment Assignment
- yes
- H And D Enrichment Class 3
- Panel components
- AWG Gauge
- AWG 6...350 kcmil 1 aluminium/copper
- Material
- aluminium
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationCommercial
H And D SubrangeCOM
H And D Enrichment FunctionACCESSORIES
H And D Enrichment Class 4Panel accessory
Energy Efficiency OptimizedFalse
Package Weight Lbs3.175 kg
Product Or Component Typemechanical lug
ReturnabilityYes
Medium DescPanelboard accessory, NF, lug kit, mechanical, 250A, Al/Cu
Product Kit IdentifierN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical lug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
