Square D NF125FTL Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/f7f957dcb995dbc376ffa8645b5b4b19aed74c9b-medium.png

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/18b1095d8886e4117b52037f08d6cff28aa46267-medium.png

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/ebd4c28dc097900356894917f5ea57f545d31ef6-medium.png

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

Square D NF125FTL Panelboard accessory, NF, lug kit, feed thru, 125A, aluminum

MPN: NF125FTL
UPC: 785901538684
PPN: SCH-NF125FTL

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$926.89/ EA

Loading add to cart quantity...

Description

NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a feed through lug kit. This feed through lug kit is rated at 125A and is aluminum. This feed through lug kit is UL listed and CSA certified by UL.

Specifications

Environment

Product Certifications: cULus

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Rohs Exemption InformationYes

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

[In] Rated Current: 125-125 A

Material: aluminium

Tightening Torque6.8-7.3 N.m 13.3-177.3 mm² AWG 6...350 kcmil)

Specifications

Product Or Component Type: lug kit

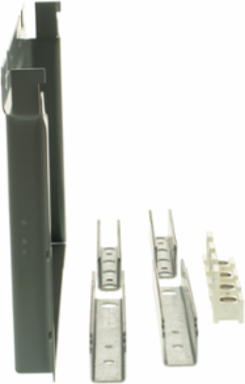

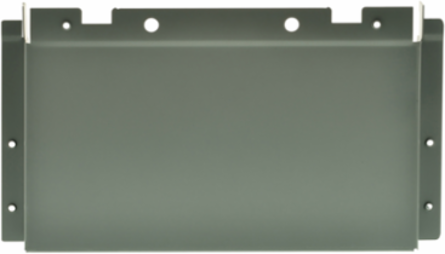

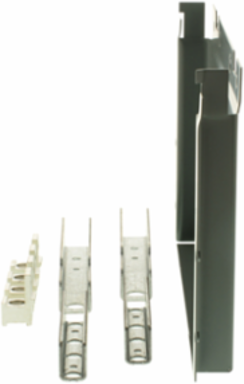

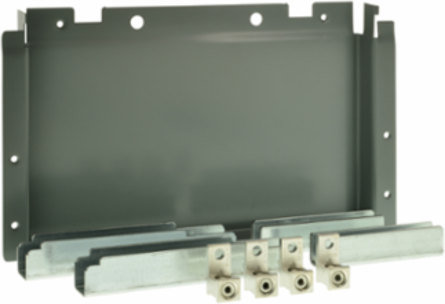

Provided Equipmentscrew set 1 || rail extension 2 || rail splice 2 || lug 4 || cover extension 1

Downloads
