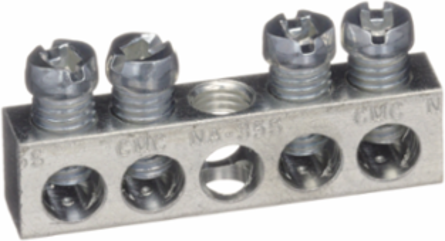

Square D PK4GTA QO Load Center Ground Bar Kit, 1.67 Inch Length, 4 Connectors
- MPN: PK4GTA
- UPC: 785901026365
- PPN: SCH-PK4GTA
- UNSPSC: 39121101
CAD
$21.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 4 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.
Features

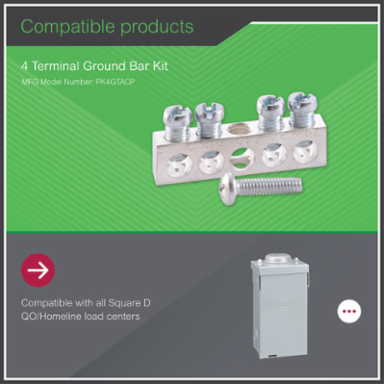

- This authentic factory accessory is designed for direct mounting in the back of the enclosure on all standard Square D QO and Homeline series load centers. It serves as a certified, true-spec match that eliminates physical interference with pre-existing interior components or terminal buses
- This versatile 4-terminal grounding block features high-capacity screw connectors rated to accept a single AWG 14 to AWG 4 copper wire, or an AWG 12 to AWG 4 aluminum wire per slot. It effortlessly handles main equipment grounding conductors as well as smaller branch circuit bonds within the same bar.
- This heavy-duty assembly is strictly UL component recognized and CSA certified, ensuring full compliance with local electrical safety regulations and inspection protocols. Installing this factory-authorized kit ensures the integrity of your sub-panel grounding path without risking the void of the load center's overall warranty.

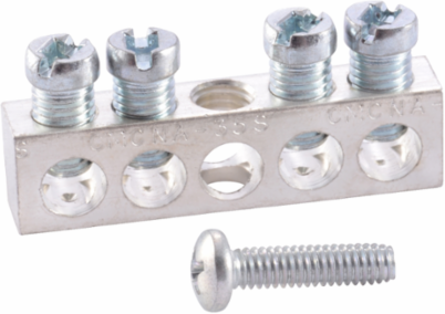

- The complete factory kit includes the 1.67-inch equipment ground bar, two thread-cutting mounting screws, and an official equipment grounding label. This all-in-one package allows for rapid direct-to-casing installation using common field tools, saving valuable time on the job site.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 0.312 in |
|---|
Physical Attributes

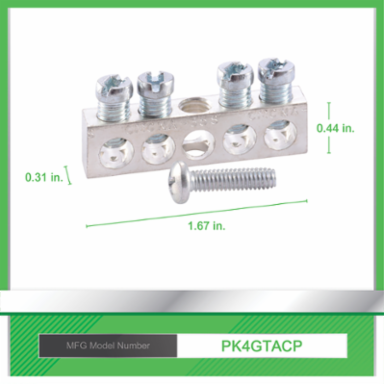

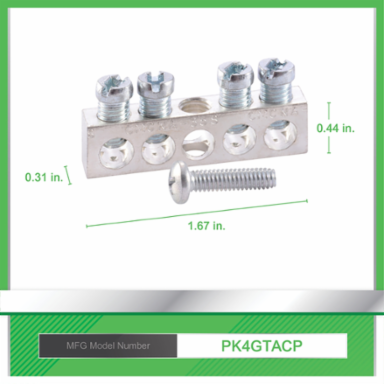

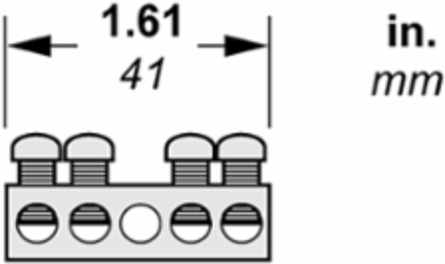

| Bar Length | 1.67 in |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Tightening Torque | 25 lb.in, 12 AWG...10 AWG, aluminium, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper |
| Local Publishable Date | 2026-07-14 |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | 1 screw |
| Returnability | Yes |
| Height Nominal | .437 in |
| Customs Code | 8536904000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...4 AWG copper12 AWG...4 AWG aluminium |
| Number Of Connectors | 4 |
| Product Or Component Type | bar |
| Range Of Product | QO |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | bar |
|---|---|
| Range Of Product | QO |
| Provided Equipment | 1 screw |
|---|
ETIM
| ETIM 8 | EC000329 |
|---|---|
| ETIM 10 | EC000329 |
| ETIM 9 | EC000329 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
