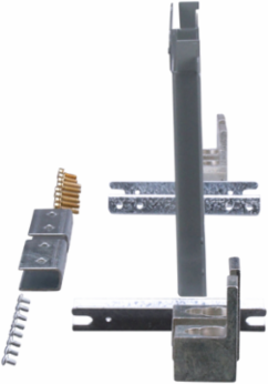

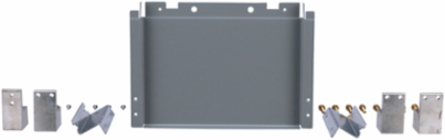

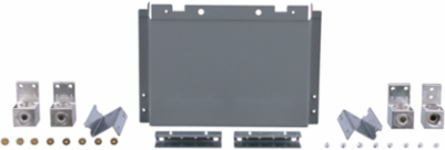

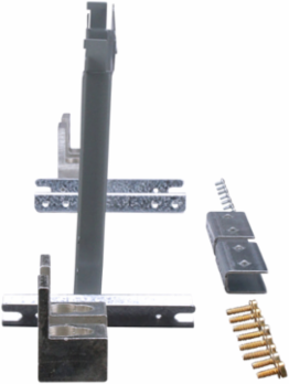

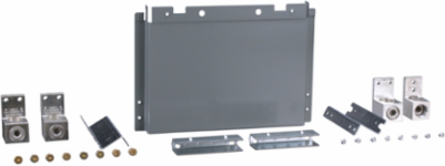

Square D NQFTL4H Feedthrough Lug Kit, 400A, 54+ Circuits, cULus Certified
- MPN: NQFTL4H
- UPC: 785901483861
- PPN: SCH-NQFTL4H
CAD
$1338.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a lug kit used for feed thru systems. This kit is rated at 400A and can be used on 54 or more circuits panelboards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 400-400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Number Of Circuits
- 54, 84, 72
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Energy Efficiency Optimized
- False
- Product Or Component Type
- lug kit
- Returnability
- Yes
- Tightening Torque
- 6.8-7.3 N.m (AWG 1/0...750 kcmil)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipmentconnector 3
Sustainable PackagingNo
Certificate AgencycULus
Package Weight(Lbs)2.418 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- lug kit
Provided Equipmentconnector 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
