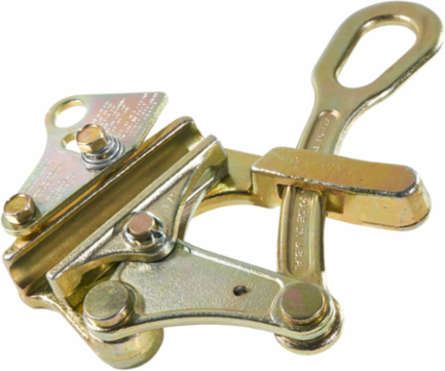

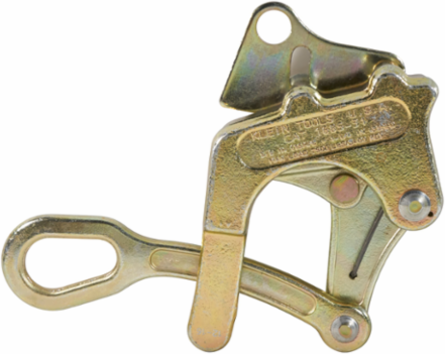

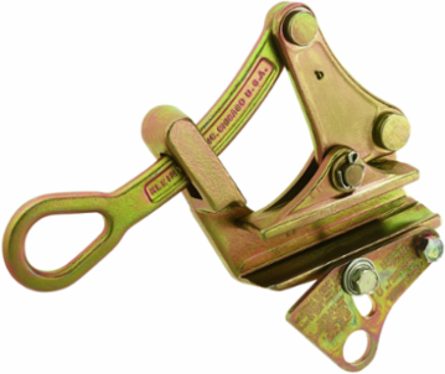

Klein Tools 1685-31 Parallel Jaw Grip 4-1/2 Inch Length, 7500 lb Maximum Safe Load, for Cable Pulling

MPN: 1685-31
UPC: 092644471780
PPN: KLT-1685-31
UNSPSC: 27111712

$799.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Features

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
Made in USA
Hot Latch, Spring

Documentation & Downloads

Specifications

Key Specifications

Type	Parallel Jaw Grip
Cable Type	Messenger, EHS, Guy Strand
Cable Diameter	0.625" to 1.25" (15.87 to 31.75 mm)
Hot Latch	Yes
Locking Handle	No
Teeth Type	Coarse
Overall Width (Inch)	2.4
Overall Length (Inch)	11.7
Jaw Length (Inch)	4.5
Maximum Safe Load (kg)	3401.9
Jaw Length (cm)	11.4
Weight (kg)	2.2
Width	4.5000 in
Weight	4.8240 lbs

Material	Steel
Application	Wire Pulling
Jaw Type	Round
Spring	Yes
Swing Latch	No
Overall Width (cm)	6.1
Overall Height (Inch)	6.4
Maximum Safe Load (lb)	7500
Overall Length (cm)	29.7
Weight (lb)	4.8
Overall Height (cm)	16.3
Height	1.8000 in
Depth	11.7000 in
