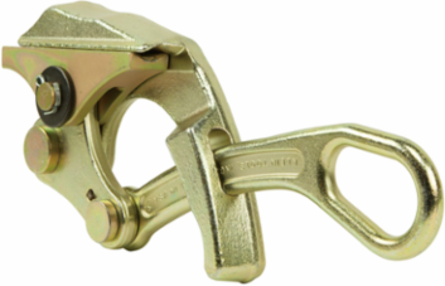

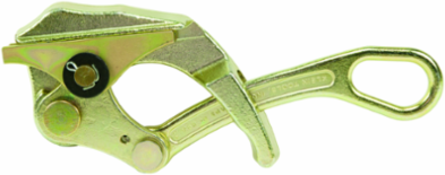

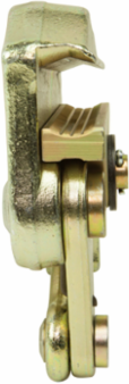

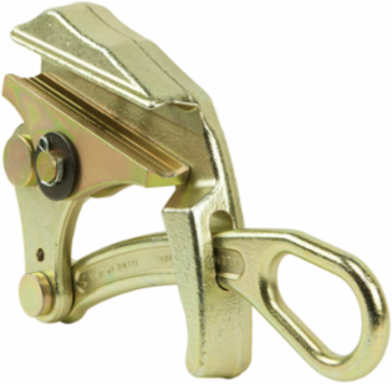

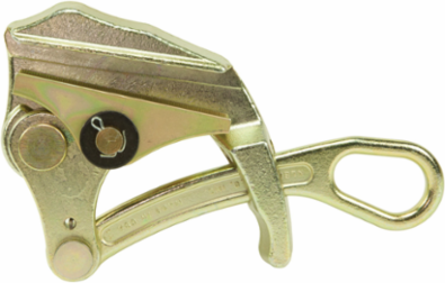

Klein Tools 1685-50C Parallel Jaw Grip for Coated Guy Strand, 5 Inch Jaw, Cable Diameter 0.3 to 0.8 Inch
- MPN: 1685-50C
- UPC: 092644471704
- PPN: KLT-1685-50C
- UNSPSC: 27111712
CAD
$1047.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

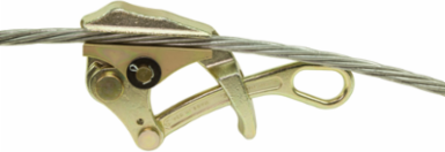

This lightweight, compact grip pulls guy strand and EHS cable sizes from 0.3-Inch to 0.8-Inch (8 to 20 mm). Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. The aggressive jaw prevents slipping on guy strand. Spring-loaded for easy one-handed operation.
Features
- Pulls 5/16-Inch to 3/4-Inch steel cables
- For use on guy strand and EHS cable sizes from 0.3 to 0.8 inches (8 - 20 mm)
- Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables and spring helps maintain cable position in grips jaw
- 5-Inch (127 mm) jaw length increases surface area contact with the cable
- Made in USA
- Round Inside-jaw Contour
Documentation & Downloads
Specifications
Key Specifications
| Cable Type | Guy Strand, EHS, Coated, Messenger |
|---|---|
| Application | Wire Pulling |
| Jaw Type | Round |
| Hot Latch | No |
| Locking Handle | No |
| Teeth Type | Coarse |
| Maximum Safe Load (lb) | 10000 |
| Overall Length (cm) | 28.9 |
| Weight (lb) | 7 |
| Weight (kg) | 3.2 |
| Width | 6.4330 in |
| Weight | 7.0000 lbs |
| Type | Parallel Jaw Grip |
|---|---|
| Cable Diameter | 0.3" to 0.8" (7.62 to 20.3 mm) |
| Material | Steel |
| Spring | Yes |
| Swing Latch | No |
| Overall Length (Inch) | 11.365 |
| Jaw Length (Inch) | 5 |
| Maximum Safe Load (kg) | 4535.9 |
| Jaw Length (cm) | 12.7 |
| Height | 2.0150 in |
| Depth | 11.3650 in |
