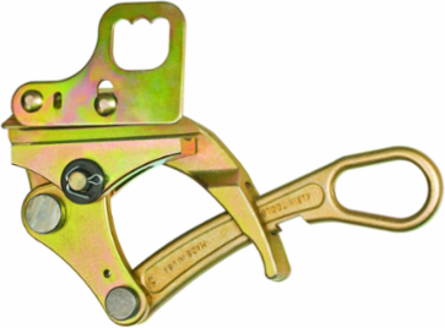

Klein Tools KT4601 Parallel Jaw Grip with Hot Latch, 0.30 to 0.80 Inch Cable Diameter, 10,000 lb Capacity
- MPN: KT4601
- UPC: 092644477546
- PPN: KLT-KT4601
- UNSPSC: 27111712
CAD
$471.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.
Features
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Made in USA
- Hot latch closes automatically to guard wire
- Max Safe Load of 10,000-Pound (4536 kg)
- Hot Latch, Spring, Locking Handle
Documentation & Downloads
Specifications
Key Specifications
- Application
- Wire Pulling
- Type
- Parallel Jaw Grip
- Cable Diameter
- 0.3" to 0.8" (7.62 to 20.3 mm)
- Hot Latch
- Yes
- Locking Handle
- Yes
- Teeth Type
- Coarse
- Overall Width (Inch)
- 8
- Overall Length (Inch)
- 10
- Jaw Length (Inch)
- 5
- Maximum Safe Load (kg)
- 4535.9
- Jaw Length (cm)
- 12.7
- Weight (kg)
- 3.2
- Width
- 8.0000 in
- Weight
- 7.0000 lbs
Jaw TypeRound
MaterialSteel
Cable TypeACSR, AAC, Copper
SpringYes
Swing LatchNo
Overall Width (cm)20.3
Overall Height (Inch)1
Maximum Safe Load (lb)10000
Overall Length (cm)25.4
Weight (lb)7
Overall Height (cm)2.5
Height1.0000 in
Depth10.0000 in
