Bryant HC6B25 Cat6 Slim Patch Cord, 25 ft, Blue, Stranded Copper, 300V AC
- MPN: HC6B25
- UPC: 662620231556
- PPN: HBL-HC6B25
- UNSPSC: 43223303
CAD
$48.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

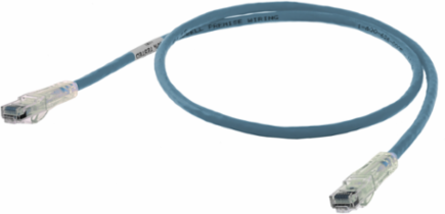

Patch Cord, Speed Gain, Cat6, Slim, Blue, 25'
Features
- Third Party Verified Category 6 Component
- Plug Optimized For High Density Switch Ports
- TSB-155 10 Gig Support
- Qualified to 150% of 802.3bt PoE Current Level
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component
- Conductor Stranding
- Stranded
- Number of Conductors
- 8-Conductor
- Plug Type
- RJ45
- Standard
- ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component
- Type
- Standard
- Wire Size
- #24 AWG
- Number Of Conductors
- 8-Conductor
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- PCX6B25;PCX6B25GSA
- Material - Insulation
- Flame Redardant PVC
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 12 EA
- Lowest Level UOM
- Each
Width9.000 in
ColorBlue
Length25 ft
Outside Diameter0.218
Special FeaturesStandard Product
Temperature RatingPer TIA
Voltage Rating300V AC kV
Conductor TypeCopper
Description - InvoiceP-CORD, NEXTSPEED,CAT6,SLIM,BL,25FT
Harmonization Code8544422000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - JacketFlame Redardant PVC
BOX SIZE10.200x13.700x10.700 (in)
Carton - Number of Sub Packs12
Carton - SCC-14 Next Lower Level Sub Pack00662620231556
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
