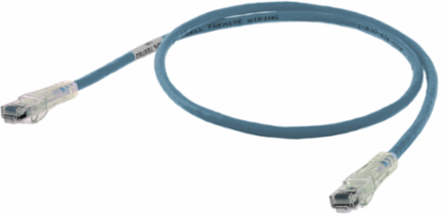

Bryant HC6B05 Cat6 Patch Cord, Slim, Blue, 5 ft, 8-Conductor, RJ45 Connector
Bryant HC6B05 Cat6 Patch Cord, Slim, Blue, 5 ft, 8-Conductor, RJ45 Connector
- MPN: HC6B05
- UPC: 662620231501
- PPN: HBL-HC6B05
- UNSPSC: 43223303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$16.43/ EA
Description
Patch Cord, Speed Gain, Cat6, Slim, Blue, 5'
Features
- Third Party Verified Category 6 Component
- Plug Optimized For High Density Switch Ports
- TSB-155 10 Gig Support
- Qualified to 150% of 802.3bt PoE Current Level
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 8.000 in
- Color
- Blue
- Length
- 5 ft
- Outside Diameter
- 0.218
- Special Features
- Standard Product
- Temperature Rating
- Per TIA
- Voltage Rating
- 300V AC kV
- Conductor Type
- Copper
- Description - Invoice
- P-CORD, NEXTSPEED,CAT6,SLIM,BL,5FT
- Harmonization Code
- 8544422000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Jacket
- Flame Redardant PVC
- BOX SIZE
- 7.500x18.300x11.700 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620231501
- Case Weight
- 9.674 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 477.600 lb.
Width8.000 in
Industry Standard(s)ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component
Conductor StrandingStranded
Number of Conductors8-Conductor
Plug TypeRJ45
StandardANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component
TypeStandard
Wire Size#24 AWG
Number Of Conductors8-Conductor
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberPCX6B05;PCX6B05GSA
Material - InsulationFlame Redardant PVC
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50
Each - Pack DescriptionEach
Pallet - GTIN - Package70662620231500
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
