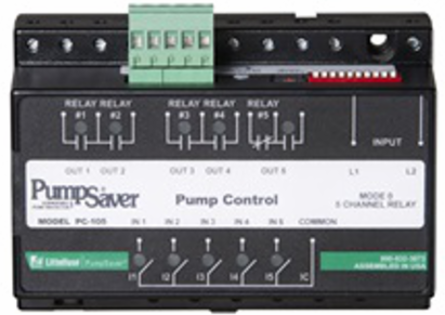

Littelfuse PC-105 PC-105 - PC-105 Series
- MPN: PC-105
- UPC: 079458997705
- PPN: LTF-PC-105
CAD
$856.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PC-105 - PC-105 Series
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 120VAC nominal |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz (50Hz will increase all delay timers by 20%.) |
| Time Delay Option | Time delay / lag pump delay: 2 - 255s |
| Sense Voltage | 5vdc continuous (probe) |
| Mounting Method | 35mm DIN rail or Surface Mount (#6 or #8 screws) |
| Humidity | 50/60Hz |
| Weight (lbs/g) | 1.2 lbs. (19.2 oz. 544.3 g) |
| Maximum Input Power | 4W (max.) |
|---|---|
| Output Load Rating (VA) | Pilot Duty: 480VA @ 240VAC B300; General Purpose: 7A @ 240VAC |
| Sensor Mode | 1 relay latched / time delay output |
| Termination Type | Torque: 6in-lbs (max.); Wire: 12-20AWG |
| Operating Temperature | -20° to 55°C (-4° to 131°F) |
| Dimensions | 3.70î W x 5.03î L x 2.35î H (94.1 x 127.6 x 59.7 mm) |
