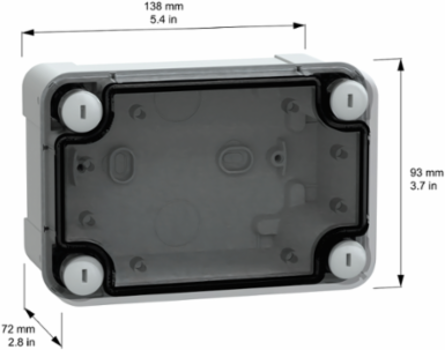

Schneider Electric NSYTBP1397T Thalassa TBP Industrial PC Box IP66 IK08 Grey 138 x 93 x 72 mm
- MPN: NSYTBP1397T
- PPN: SCH-NSYTBP1397T
- UNSPSC: 39121305
CAD
$46.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

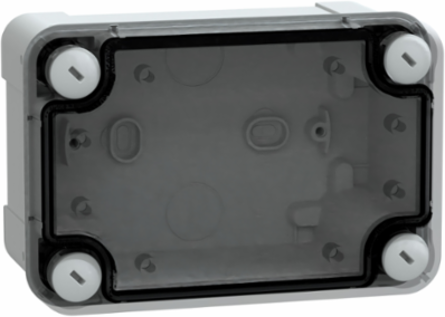

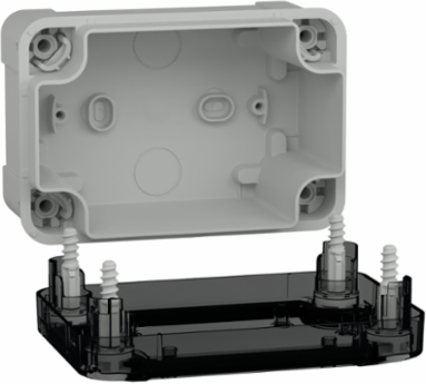

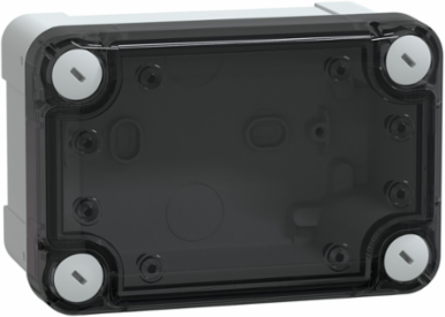

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Features
- Sealed against dust and water (IP66)
- Robust and impact resistant (IK08)
- Wide usage temperature -25ºC to 80ºC
- Fire resistant up to 960ºC
- Class II electrical insulation to avoid risks
- Only a flat screwdriver needed to use
- Easy to install with 3 fixing ways
- Captive flat screws for secure fixing cover
- UL certified and suitable for outdoor use
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|---|
| Depth | 72 mm |
| Weight | 230 g |
|---|
Physical Attributes
| Color | Gray RAL 7035), Transparent |
|---|---|
| Internal Height | 125 mm |
| Internal Depth | 65 mm |
|---|---|
| Internal Width | 80 mm |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 body, 1 cover4 cover screw |
| Carbon Footprint Of The Distribution Phase A4 | 0.4566242172310834, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.04542679629558124, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-07-10 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cover Fixing | plastic screws |
| Electrical Insulation Class | class II |
| Energy Efficiency Optimized | False |
| Lock Type | captive screw flat outside sealed area |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Product Name | PanelSeT TBP |
| Quantity Per Set | set of 2 |
| Removable Parts | cover by captive screws |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Database Version | 2023-02 |
| Height Nominal | 138 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | TÜV, UL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.2983156437437561 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.3107393822043127 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2012016EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | one piece moulded |
| Device Application | multi-purpose |
| Enclosure Mounting | wall mounted |
| Fire Resistance | 960 °C |
| Material | polycarbonate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | industrial box |
| Range | PanelSeT |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Front Cover | low transparent cover |
| Data Source | extrapolated product |
| Width Nominal | 93 mm |
| Customs Code | 3925900000 |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 1 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -15-60 °C, -15-60 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 2.111106039474733 |
| Environmental Disclosure | ENVPEP2012016EN |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-80 °C, -25-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2012016EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012016EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | industrial box |
|---|
ETIM
| ETIM 8 | EC000058 |
|---|---|
| ETIM 10 | EC000058 |
| ETIM 9 | EC000058 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
