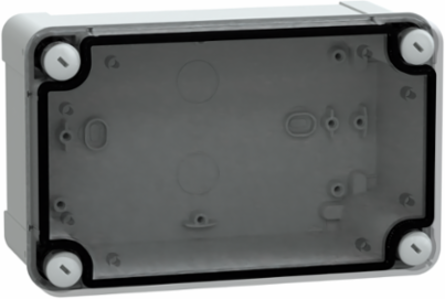

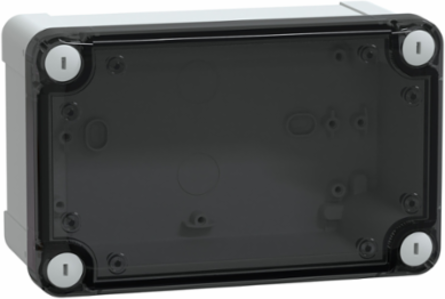

Schneider Electric NSYTBP19128T Thalassa TBP Industrial PC Box, IP66, 192x121x87 mm, Polycarbonate, IK08
- MPN: NSYTBP19128T
- PPN: SCH-NSYTBP19128T
CAD
$70.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

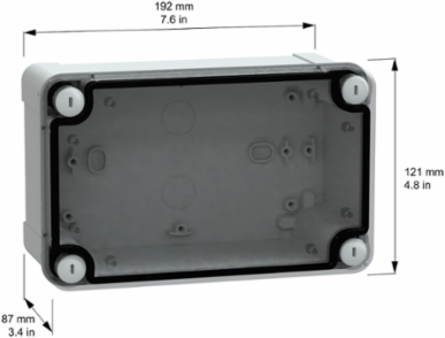

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Documentation & Downloads
Specifications
Key Specifications
- Removable Parts
- cover by captive screws
- Product Or Component Type
- industrial box
- Internal Height
- 175 mm
- Product Name
- Thalassa TBP
- Device Composition

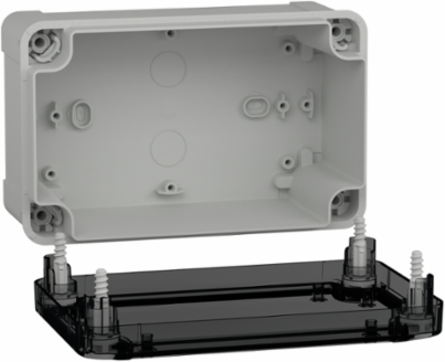

- 1 body || 1 cover || 4 cover screw
- Range
- Thalassa
- Cover Fixing
- plastic screws
- Quantity Per Set
- set of 2
- Depth
- 87 mm
Height192 mm
Internal Width105 mm
Internal Depth80 mm
Lock Typecaptive screw flat outside sealed area
Type Of Front Coverlow transparent cover
Body Typeone piece moulded

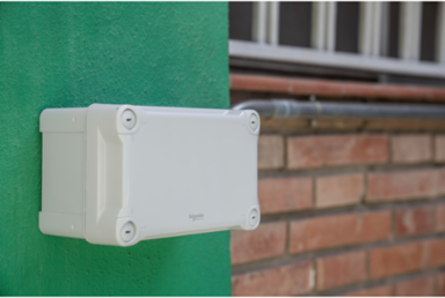

Enclosure Mountingwall mounted
Width121 mm
Device Applicationmulti-purpose
Complementary
- Product Certifications
- TÜV || UL
- Net Weight
- 0.38 kg
- Material
- polycarbonate
- Colour
- grey RAL 7035) || transparent
StandardsIEC 62208 || UL 508 A
Electrical Insulation Classclass II
Mounting Locationoutdoor (with canopy or shelter and anticondensation valve)
Environment
- Ik Degree Of Protection
- IK08 conforming to IEC 62262
- Ip Degree Of Protection
- IP66 NEMA 4.4X
- Fire Resistance
- 960 °C
Ambient Air Temperature For Operation-25-80 °C
Ambient Air Temperature For Storage-15-60 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2012016EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2012016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
