Weidmuller 9500780000 PCF 10.00/05/180 3.5SN OR BX

MPN: 9500780000
PPN: WDM-9500780000

$2.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

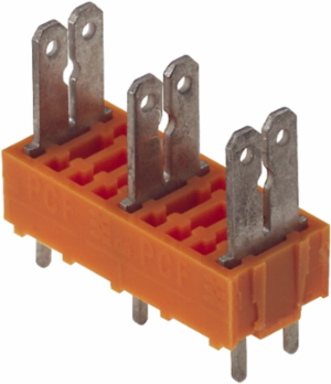

Printed circuit board terminals, 10.00 mm, Number of poles: 5, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group C / UL 1059)	15 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E60693
Rated voltage (Use group C / UL 1059)	300 V
Rated current (Use group B / UL 1059)	15 A
Rated current (Use group D / UL 1059)	10 A

Approvals

Approvals	CSA, UR
UL File Number Search	E60693

ROHS	Conform

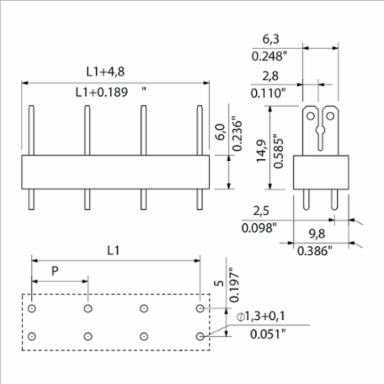

Dimensions And Weights

Width	44.8 mm
Height	18.4 mm
Height of lowest version	14.9 mm
Depth (inches)	0.386 inch

Width (inches)	1.764 inch
Height (inches)	0.724 inch
Depth	9.8 mm
Net weight	4.81 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	26 A
Rated current, max. number of poles (Tu=40°C)	22 A
Rated voltage for surge voltage class / pollution degree III/2	690 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV

Rated current, min. number of poles (Tu=20°C)	24 A
Rated current, min. number of poles (Tu=40°C)	24 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	690 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	6 kV
Short-time withstand current resistance	3 x 1s mit 192 A

Material Data

Insulating material	PA
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-2
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Colour	orange
Insulating material group	I
Insulation strength	≥ 108 Ω
Contact material	CuSn
Layer structure of solder connection	1.5-3 µm Ni / 5-7 µm Sn
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01
UNSPSC	30-21-18-01

System Parameters

Product family	PCF
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	10 mm
Number of poles	5
Number of rows	1
Solder pin dimensions	0.8 x 1.0 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in mm	40 mm
Touch-safe protection acc. to DIN VDE 0470	IP 00
Insulation strength	≥ 108 Ω

Wire connection method	Flat-blade connection
Conductor outlet direction	180°
Pitch in inches (P)	0.394 inch
Fitted by customer	No
Solder pin length (l)	3.5 mm
Solder eyelet hole diameter (D)	1.3 mm
Number of solder pins per pole	2
L1 in inches	1.575 inch
Volume resistance	1.20 mΩ

Packing

Packaging	Box
VPE width	110 mm

VPE length	60 mm
VPE height	145 mm

Notes

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group D / CSA)	300 V
Rated current (Use group C / CSA)	15 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.
