Weidmuller 9500410000 PCF 5.00/02/180 3.5SN OR BX
- MPN: 9500410000
- PPN: WDM-9500410000
CAD
$0.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

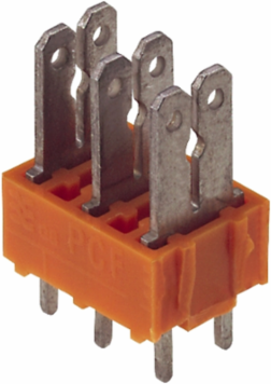

Printed circuit board terminals, 5.00 mm, Number of poles: 2, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated current (Use group B / UL 1059)
- 15 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, UR
- UL File Number Search
- E60693
ROHSConform

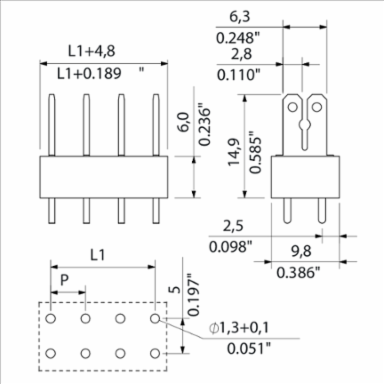

Dimensions And Weights
- Width
- 9.8 mm
- Height
- 18.4 mm
- Height of lowest version
- 14.9 mm
- Depth (inches)
- 0.386 inch
Width (inches)0.386 inch
Height (inches)0.724 inch
Depth9.8 mm
Net weight1.85 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 21 A
- Rated current, max. number of poles (Tu=40°C)
- 18 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)24 A
Rated current, min. number of poles (Tu=40°C)24 A
Rated voltage for surge voltage class / pollution degree II/2630 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s mit 192 A
Material Data
- Insulating material
- PA
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-2
- Contact surface
- tinned
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourorange
Insulating material groupI
Insulation strength≥ 108 Ω
Contact materialCuSn
Layer structure of solder connection1.5-3 µm Ni / 5-7 µm Sn
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
UNSPSC30-21-18-01
System Parameters
- Product family
- PCF
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 5 mm
- Number of poles
- 2
- Number of rows
- 1
- Solder pin dimensions
- 0.8 x 1.0 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in mm
- 5 mm
- Touch-safe protection acc. to DIN VDE 0470
- IP 00
- Insulation strength
- ≥ 108 Ω
Wire connection methodFlat-blade connection
Conductor outlet direction180°
Pitch in inches (P)0.197 inch
Fitted by customerNo
Solder pin length (l)3.5 mm
Solder eyelet hole diameter (D)1.3 mm
Number of solder pins per pole2
L1 in inches0.197 inch
Volume resistance1.20 mΩ
Packing
- Packaging
- Box
- VPE width
- 115 mm
VPE length45 mm
VPE height125 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 150 V
- Rated current (Use group B / CSA)
- 15 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)12400-282
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
