Tripp Lite PDU121506 Basic PDU, 1.8kW 120V, 13 NEMA 5-15R Outlets, 5-15P Input, 6 ft Cord, 1U

MPN: PDU121506
UPC: 037332255747
PPN: TRP-PDU121506

$209.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

1.8kW 120V Single-Phase Basic PDU - 13 NEMA 5-15R Outlets, 5-15P Input, 6 ft. Cord, 1U Rack-Mount

Features

Rack-mounting hardware
Owner's manual

Documentation & Downloads

Specifications

Performance

PDU Type	Basic
PDU Input Voltage	120V
Maximum Input Amps	15A
Frequency Compatibility	50 / 60 Hz
Overload Protection	15A Breaker
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	5% to 95% non-condensing

Input Phase	Single-Phase
Recommended Electrical Service	Single-phase 15A 120V service
Output Capacity	1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet
Output Nominal Voltage	120V
Switches	No power switch
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Operating Elevation	0-10000 ft. (0-3000 m)

Dimensions

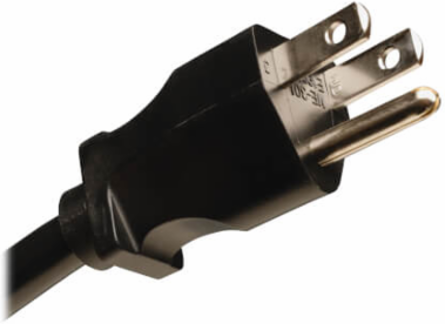

Input Connection Type	NEMA 5-15P
Output Receptacles	(13) 5-15R
Minimum Required Rack Depth	7.5 in
PDU Form Factor	Horizontal (1U)
Unit Weight	4.9 lb

Input Cord Length	6 ft
Form Factors Supported	1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Outlets Measurement	30.2mm
Unit Dimensions	1.750 x 20.000 x 4.500
Grounding	Grounding lug
