Tripp Lite PDU1226 Basic PDU, 2.4kW 120V, 13 NEMA 5-15/20R Outlets, 5-20P Input, 6 ft Cord, 1U
- MPN: PDU1226
- UPC: 037332255754
- PPN: TRP-PDU1226
CAD
$337.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2.4kW 120V Single-Phase Basic PDU - 13 NEMA 5-15/20R Outlets, 5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount
Features
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Performance
- PDU Type
- Basic
- PDU Input Voltage
- 120V
- Maximum Input Amps
- 20A
- Frequency Compatibility
- 50 / 60 Hz
- Overload Protection
- 20A circuit breaker
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 5% to 95% non-condensing
Input PhaseSingle-Phase
Recommended Electrical ServiceSingle-phase 20A 120V service
Output Capacity2.4kW (120V) / 20A total capacity; 16A max per 5-15/20R outlet
Output Nominal Voltage120V
SwitchesNo power switch
Storage Temperature Range-22° to 122°F (-30° to 50°C)
Operating Elevation0-10000 ft. (0-3000 m)
Dimensions

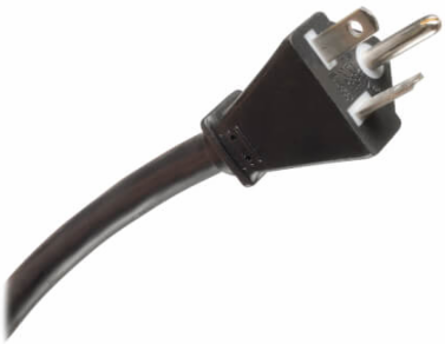

- Input Connection Type
- NEMA 5-20P
- Output Receptacles
- (13) 5-15/20R
- Minimum Required Rack Depth
- 9.5 in
- PDU Form Factor
- Horizontal (1U)
- Unit Weight
- 5.2 lb
Input Cord Length6 ft
Form Factors Supported1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Outlets Measurement30.2mm
Unit Dimensions1.750 x 19.000 x 4.500
GroundingGrounding lug
Material
- Material of Construction
- Metal
Compliance
- Product Warranty Period
- 5-year limited warranty
