Tripp Lite PDUMH15ATS ATS/Local Metered PDU, Single-Phase 120V, 8 5-15R Outlets, Dual 5-15P Inputs, 12 ft Cords, 1U
- MPN: PDUMH15ATS
- UPC: 037332261366
- PPN: TRP-PDUMH15ATS
CAD
$831.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1.44kW 120V Single-Phase ATS/Local Metered PDU - 8 NEMA 5-15R Outlets, Dual 5-15P Inputs, 12 ft. Cords, 1U, TAA
Features

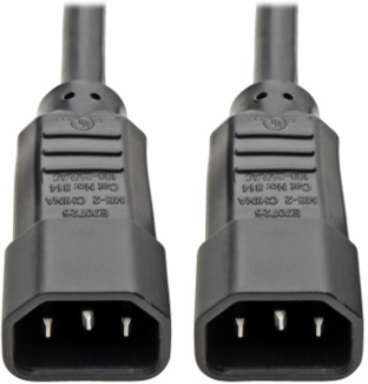

- Detachable C13 to NEMA 5-15P secondary input cord, 12 ft. (3.7 m)

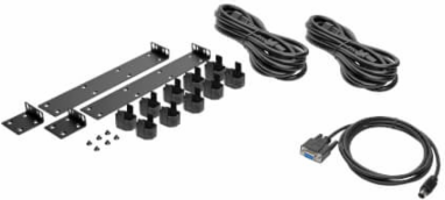

- Rack-mounting hardware
- Cord Retention Kit
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| PDU Plug Type | (2) NEMA 5-15P |
|---|---|
| Input Cord Length | 12 |
| Form Factors Supported | 1U rackmount |
| PDU Form Factor | Horizontal (1U) |
| Unit Weight | 11 |
| Input Cord Details | Set of 2 inputs enable connection to separate PRIMARY and SECONDARY power sources |
|---|---|
| Output Receptacles | (8) 5-15R |
| Minimum Required Rack Depth | 17.5 |
| Unit Dimensions | 1.750 x 17.500 x 14.500 |
Material
| Material of Construction | Metal |
|---|
| Receptacle Color | Black |
|---|
Compliance
| Grounding | Rear grounding lug |
|---|
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
Performance
| PDU Type | Auto-Transfer Switch; Local Metered |
|---|---|
| PDU Input Voltage | 100; 120; 127 |
| Maximum Input Amps | 15 |
| Output Capacity Details | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet |
| Output Nominal Voltage | 100V; 120V; 127V |
| LED Indicators | 8 front panel LEDs display power on / off status for each outlet, plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Operating Elevation | 0-10000 ft. (0-3000 m) |
| Input Phase | Single-Phase |
|---|---|
| Recommended Electrical Service | 15A 120V |
| Maximum Input Amps Details | Agency de-rated to 12A continuous |
| Frequency Compatibility | 50 / 60 Hz |
| Front Panel LCD Display | Two digit current meter reports whole PDU output load in amps |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
