Tripp Lite PDUMH20ATS 1.92kW 120V Single-Phase ATS/Local Metered PDU - 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12 ft. Cords, 1U, TAA
- MPN: PDUMH20ATS
- UPC: 037332261373
- PPN: TRP-PDUMH20ATS
CAD
$1100.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1.92kW 120V Single-Phase ATS/Local Metered PDU - 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12 ft. Cords, 1U, TAA
Features

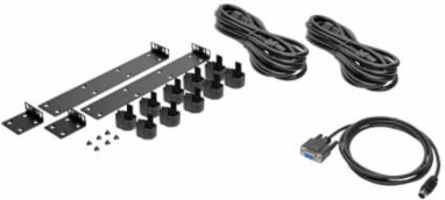

- PDUMH20ATS 1.92kW Single-Phase ATS/Local Metered PDU
- Detachable C19 to NEMA L5-20P secondary input cord, 12 ft. (3.7 m)
- (2) L5-20R to 5-20P plug adapters
- Cable Retention Kit
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Input Connection Type | Primary: Attached L5-20P, Secondary: C20 inlet with detachable C19-to-L5-20P cordset; L5-20-to-L5-20P adapters |
|---|---|
| Input Cord Details | Set of two L5-20P cordsets with two 5-20P adapters enable connection to separate PRIMARY and SECONDARY power sources |
| Output Receptacles | (16) 5-15/20R |
| LED Indicators | 16 front panel LEDs display power on / off status for each outlet, plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| Minimum Required Rack Depth | 19.5 in |
| Unit Dimensions | 1.750 x 17.500 x 14.500 in |
| Grounding | Rear grounding lug |
| PDU Plug Type | (2) NEMA 5-20P; (2) NEMA L5-20P |
|---|---|
| Input Cord Length | 12 ft |
| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Form Factors Supported | 1U rackmount |
| PDU Form Factor | Horizontal (1U) |
| Unit Weight | 12.2 lb |
Performance
| PDU Type | Auto-Transfer Switch; Local Metered |
|---|---|
| PDU Input Voltage | 100V; 120V; 127V |
| Maximum Input Amps | 20A (Agency de-rated to 16A maximum) |
| Frequency Compatibility | 50 / 60 Hz |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Input Phase | Single-Phase |
|---|---|
| Recommended Electrical Service | 20A 120V |
| Output Capacity Details | 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet |
| Output Nominal Voltage | 100V; 120V; 127V |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Operating Elevation | 0-10000 ft. (0-3000 m) |
Material
| Material of Construction | Metal |
|---|
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
