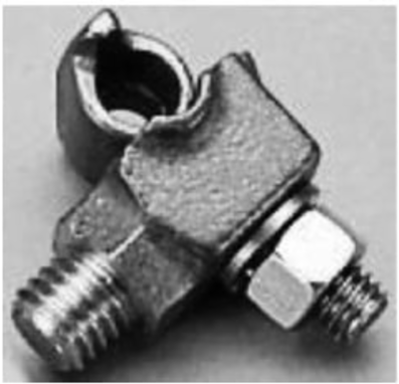

ILSCO HGSE-020 Permaground Copper Transformer Ground Clamp, Conductor Range 2/0-8 Sol, Two-Way Basket
- MPN: HGSE-020
- UPC: 783669006025
- PPN: ILC-HGSE-020
- UNSPSC: 39121408
CAD
$54.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Permaground Ground Clamp Connector, Mechanical connection, Copper material, mounting bolt/stud size 1/2-13 in, Copper/Aluminum Primary Conductor 2/0 Str - 8 Str and 2/0 Sol - 8 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 9/16 External Hex, primary color Copper,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366900602
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 2/0 Sol - 8 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 8 Str
- Conductor Size AL (Primary, run, main, line)
- 2/0 Sol,1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
- Clamping Bolt Size (mm)
- 965.2
- Drive Type Main
- External Hex
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size (mm)
- 30810.2
- Width (IN)
- 1.25
- Weight (LB)
- 0.625
- Material
- Copper
- Conductor Material
- Copper
- Direct Burial
- FALSE
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)2/0 Str - 8 Str
Conductor Size CU (Primary, run, main, line)2/0 Sol,1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
Conductor Range AL Solid (Primary, run, main, line)2/0 Sol - 8 Sol
Clamping Bolt Size3/8/2020
Drive Size Main16-Sep
Mounting Bolt/Stud Size1/2/2013
Wire Binding Screw Size1/2/2013
Length (IN)2
Height (IN)1.938
Mounting Bolt/Stud Size (mm)30810.2
Clamping Hardware MaterialSteel
ColorCopper
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Wire OrientationParallel,Perpendicular
CrossSellDE-OX-C-8OZ
