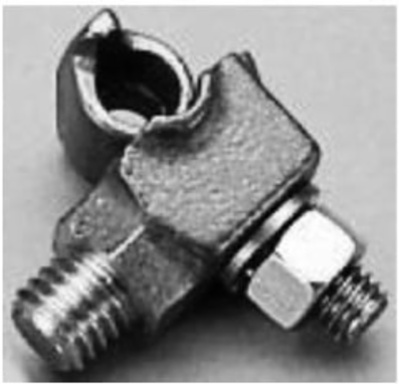

ILSCO HGSE-250 Permaground Copper Transformer Ground Clamp, Conductor Range 250-6 Sol, Two-Way Basket
- MPN: HGSE-250
- UPC: 783669006049
- PPN: ILC-HGSE-250
- UNSPSC: 39121408
CAD
$153.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Permaground Ground Clamp Connector, Mechanical connection, Copper material, mounting bolt/stud size 1/2-13 in, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, primary color Copper,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366900604
- Dual Rated
- FALSE
- Conductor Size CU (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
- Conductor Size AL (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
- Clamping Bolt Size (mm)
- 304.8
- Drive Type Main
- External Hex
- Number of Wire Binding Screws per Port
- 1
- Width (IN)
- 1.875
- Weight (LB)
- 0.75
- Material
- Copper
- Conductor Material
- Copper
- Direct Burial
- FALSE
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 6 Str
Conductor Range AL Stranded (Primary, run, main, line)250 kcmil - 6 Str
Clamping Bolt Size1/2/2020
Drive Size Main4-Mar
Mounting Bolt/Stud Size1/2/2013
Length (IN)2.625
Height (IN)2.125
Mounting Bolt/Stud Size (mm)30810.2
Clamping Hardware MaterialSteel
ColorCopper
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Wire OrientationParallel,Perpendicular
CrossSellDE-OX-C-8OZ
