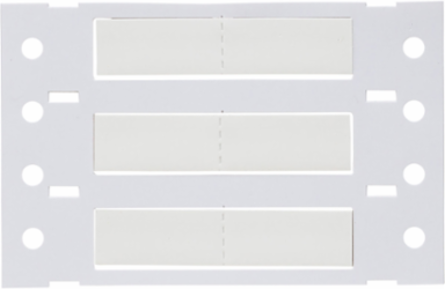

Brady 2HX-250-2.3-WT-2 PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeves, 0.25" Dia x 1.15" W, White
Brady 2HX-250-2.3-WT-2 PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeves, 0.25" Dia x 1.15" W, White
- MPN: 2HX-250-2.3-WT-2
- UPC: 662820824503
- PPN: BRD-2HX-250-2.3-WT-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1853.03/ EA
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features

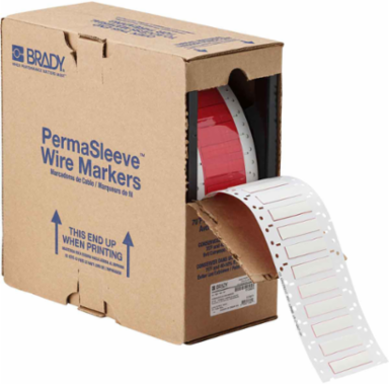

- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 2
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions (Metric)
- 11.2 mm H
- Height (in/ft/yd)
- 0.439 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.2 mm
- Recovered Diameter (mm/cm/m)
- 3.2 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 29.2 mm W
- Sleeve Width (mm/cm/m)
- 29.2 mm
- Wire Diameter Range
- 0.125 in to 0.215 in
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Quantity per Roll2000
Recommended RibbonR6402
Sleeve SlitsYes
Total Quantity2000
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.25 in
Dimensions0.439 in H
Dimensions 20.439 in H
Height (mm/cm/m)11.2 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)5.5 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Recovered Diameter (in/ft/yd)0.125 in
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)0.25 in Dia x 1.15 in W
Sleeve Width (in/ft/yd)1.15 in
Vertical Repeat0.75 in
Regulatory Information
- California Prop 65
- Due to inconclusive data, this product may not ship to California at this time
- EU RoHS Compliance
- Pass 2011/65/EU
Contains Heavy Metal(s)No - Does not contain
EU RoHS CompliantYes
