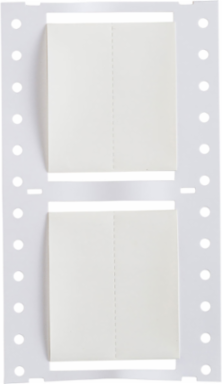

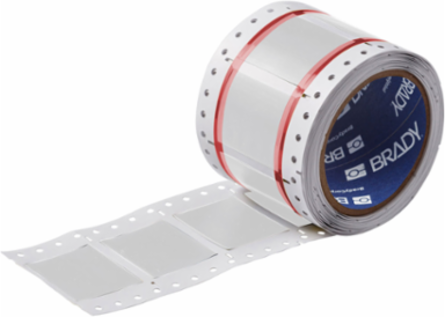

Brady HX-1500-2-WT-2 PermaSleeve HX Heat Shrink Wire Marking Sleeves, 1.5" Dia x 1" W
- MPN: HX-1500-2-WT-2
- UPC: 662820993544
- PPN: BRD-HX-1500-2-WT-2
- UNSPSC: 55121612
CAD
$1192.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 2
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (mm/cm/m)
- 38.1 mm
- Dimensions (Metric)
- 61.8 mm H
- Height (in/ft/yd)
- 2.433 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 1.45 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.75 in
- Recovered Diameter (in/ft/yd)
- 0.75 in
- Roll Width (in/ft/yd)
- 2 in
- Sleeve Size (in/ft/yd)
- 1.5 in Dia x 1 in W
- Sleeve Width (in/ft/yd)
- 1 in
- Vertical Repeat
- 3 in
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Quantity per Roll500
Recommended RibbonR6402
Sleeve SlitsYes
Total Quantity500
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)1.5 in
Dimensions2.433 in H
Dimensions 22.433 in H
Height (mm/cm/m)61.8 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)36.8 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)19.1 mm
Recovered Diameter (mm/cm/m)19.1 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (mm/cm/m)38.1 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)25.4 mm
Wire Diameter Range0.75 in to 1.45 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
