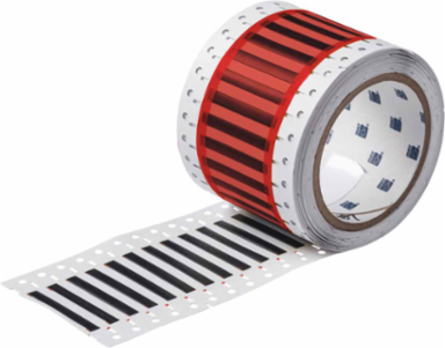

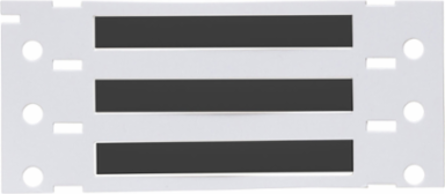

Brady HX-125-2-BK PermaSleeve HX Heat Shrink Wire Marking Sleeves, Black, 0.125" Dia x 2" W
- MPN: HX-125-2-BK
- UPC: 662820819240
- PPN: BRD-HX-125-2-BK
- UNSPSC: 55121612
CAD
$2620.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Quantity per Roll
- 2500
- Recommended Ribbon
- R6702-WT
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 2500 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7642
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 3.2 mm
- Dimensions (Metric)
- 50.80 mm W x 6.00 mm H
- Height (in/ft/yd)
- 0.235 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.11 in
- Maximum Wire Gauge
- 16 AWG
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.57 mm
- Recovered Diameter (in/ft/yd)
- 0.062 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 3.2 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Vertical Repeat (mm)
- 12.70 mm
- Wire Diameter Range
- 0.062 in to 0.11 in
- Wire Gauge Range
- 20 AWG to 16 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll2500
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72; i7100
Quantity per Row1
Ribbon SeriesR4500-SV
Suggested Ribbon SeriesR4300; R6000 Halogen Free; R6400; R6600
Total Quantity2500
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7642
Diameter as Supplied (in/ft/yd)0.125 in
Dimensions0.235 in H
Dimensions 20.235 in H
Height (mm/cm/m)6.00 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)2.79 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.062 in
Minimum Wire Gauge20 AWG
Recovered Diameter (mm/cm/m)1.6 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.125 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat0.5 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge18-12
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
