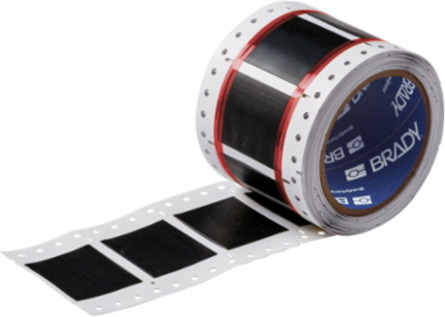

Brady HX-1000-150-BK-2 PermaSleeve HX Heat Shrink Wire Marking Sleeves, Black, 1" Dia x 0.75" W
Brady HX-1000-150-BK-2 PermaSleeve HX Heat Shrink Wire Marking Sleeves, Black, 1" Dia x 0.75" W
- MPN: HX-1000-150-BK-2
- UPC: 662820819493
- PPN: BRD-HX-1000-150-BK-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$919.57/ EA
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Quantity per Roll
- 500
- Recommended Ribbon
- R6702-WT
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Total Quantity
- 500
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (in/ft/yd)
- 1 in
- Dimensions
- 1.66 in H
- Dimensions 2
- 1.66 in H
- Height (mm/cm/m)
- 42.16 mm
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Diameter (mm/cm/m)
- 24.13 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 12.70 mm
- Recovered Diameter (in/ft/yd)
- 0.5 in
- Roll Width (in/ft/yd)
- 1.5 in
- Size - Width (mm)
- 19.05 mm
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 19.1 mm W
- Sleeve Width (mm/cm/m)
- 19.1 mm
- Vertical Repeat (mm)
- 50.80 mm
- Wire Diameter Range
- 0.5 in to 0.95 in
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll250
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72; i7100
Quantity per Row2
Ribbon SeriesR4500-SV
Sleeve SlitsYes
Total Qty per Pack500 Sleeve(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)25.4 mm
Dimensions (Metric)19.05 mm W x 42.16 mm H
Height (in/ft/yd)1.66 in
Maximum Service Temperature °C120 °C
Maximum Wire Diameter (in/ft/yd)0.95 in
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.5 in
Minimum Wire Gauge2/0 AWG
Recovered Diameter (mm/cm/m)12.7 mm
Roll Width (mm/cm/m)38.1 mm
Sleeve Size (in/ft/yd)1 in Dia x 0.75 in W
Sleeve Width (in/ft/yd)0.75 in
Vertical Repeat2 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge1-500
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
