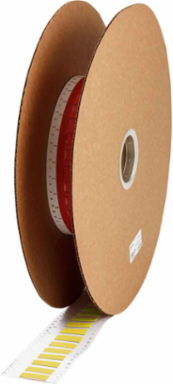

Brady HX-500-2-YL-J-4 PermaSleeve HX Heat Shrink Wire Marking Sleeves, Yellow, 0.5" Dia x 0.5" W, Roll of 10000 Each
- MPN: HX-500-2-YL-J-4
- UPC: 662820819844
- PPN: BRD-HX-500-2-YL-J-4
- UNSPSC: 55121612
CAD
$6469.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

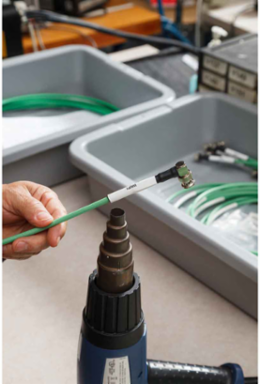

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features

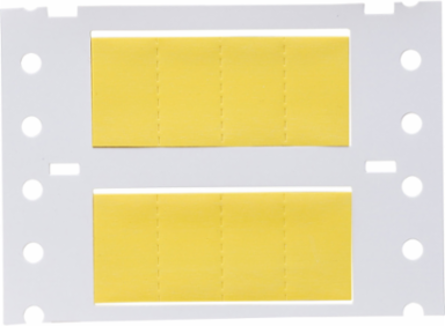

- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Bulk Part
- Bulk Part
- Enables Industry Compliance
- ASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Markers per Roll
- 2500
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; BBP72; i7100
- Quantity per Row
- 4
- Ribbon Series
- R6600
- Sleeve Slits
- Yes
- Total Qty per Pack
- 10000 Sleeve(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7642
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 12.7 mm
- Dimensions (Metric)
- 12.70 mm W x 21.60 mm H
- Height (in/ft/yd)
- 0.851 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.45 in
- Maximum Wire Gauge
- 1 AWG
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.35 mm
- Recovered Diameter (in/ft/yd)
- 0.25 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 12.70 mm
- Sleeve Size (mm/cm/m)
- 12.7 mm Dia x 12.7 mm W
- Sleeve Width (mm/cm/m)
- 12.7 mm
- Vertical Repeat (mm)
- 31.75 mm
- Wire Diameter Range
- 0.25 in to 0.45 in
- Wire Gauge Range
- 6 AWG to 1 AWG
Brand NameBrady®
ColorYellow
FinishMatte
Label/Media FormatRoll
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Printer CompatibilityBBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
Quantity per Roll10000
Recommended RibbonR6402
Shrink Ratio2:1
Suggested Ribbon SeriesR4300; R6000 Halogen Free; R6400; R6600
Total Quantity10000
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7642
Diameter as Supplied (in/ft/yd)0.5 in
Dimensions0.851 in H
Dimensions 20.851 in H
Height (mm/cm/m)21.60 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)11.43 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.25 in
Minimum Wire Gauge6 AWG
Recovered Diameter (mm/cm/m)6.4 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.5 in Dia x 0.5 in W
Sleeve Width (in/ft/yd)0.5 in
Vertical Repeat1.25 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge3-1
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Yes - Other Heavy Metals
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
