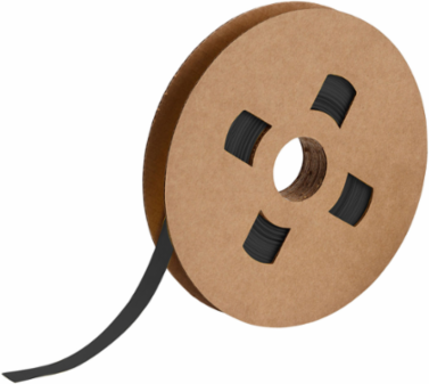

Brady PS-C-250-BK PermaSleeve Polyolefin Wire Marking Sleeves, 0.25" Dia x 90' L, Black
- MPN: PS-C-250-BK
- UPC: 754473897727
- PPN: BRD-PS-C-250-BK
- UNSPSC: 55121612
CAD
$188.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Shrink Ratio
- 3:1
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions (Metric)
- 11.2 mm H
- Height (in/ft/yd)
- 0.439 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 2.4 mm
- Recovered Diameter (in/ft/yd)
- 0.094 in
- Recovered Wall Thickness (in/ft/yd)
- 0.025 in
- Roll Length (in/ft/yd)
- 90 ft
- Sleeve Size (in/ft/yd)
- 0.25 in Dia x 90 ft L
- Wire Diameter Range
- 0.094 in to 0.215 in
Brand NameBrady®
Enables Industry ComplianceMethod 215; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202F; RoHS Compliant; UL 224
For Use with PrinterBBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Recommended RibbonIP-R6700-WT; R6700-WT
Suggested Ribbon SeriesR4502S; R6700
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.25 in
Dimensions0.439 in H
Dimensions 20.439 in H
Height (mm/cm/m)11.2 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)5.5 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.094 in
Minimum Wire Gauge16 AWG
Recovered Diameter (mm/cm/m)2.4 mm
Recovered Wall Thickness (mm/cm/m)0.64 mm
Roll Length (mm/cm/m)27.43 m
Sleeve Size (mm/cm/m)6.4 mm Dia x 27.43 m L
Wire Gauge Range16 AWG to 8 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
