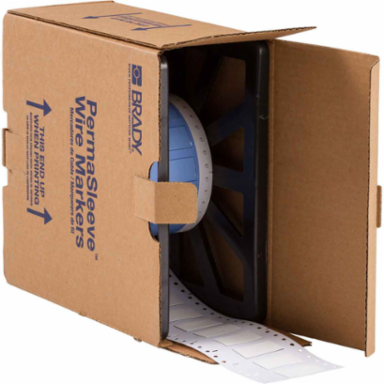

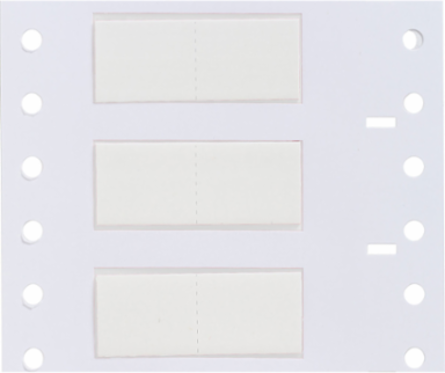

Brady PS-500-150-WT-2 PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.5" Dia x 0.75" W, Roll of 1000 Each
Brady PS-500-150-WT-2 PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.5" Dia x 0.75" W, Roll of 1000 Each
- MPN: PS-500-150-WT-2
- UPC: 662820022237
- PPN: BRD-PS-500-150-WT-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1266.97/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
- Quantity per Roll
- 1000
- Recommended Ribbon
- IP-R6606; R6606
- Shape
- Rectangle
- Sleeve Slits
- Yes
- Total Qty per Pack
- 1000 Sleeve(s) / Roll
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (in/ft/yd)
- 0.5 in
- Dimensions
- 0.851 in H
- Dimensions 2
- 0.851 in H
- Height (mm/cm/m)
- 21.60 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 11.43 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.187 in
- Minimum Wire Gauge
- 8 AWG
- Recovered Diameter (mm/cm/m)
- 4.8 mm
- Roll Width (mm/cm/m)
- 38.1 mm
- Sleeve Size (in/ft/yd)
- 0.5 in Dia x 0.75 in W
- Sleeve Width (in/ft/yd)
- 0.75 in
- Vertical Repeat
- 1.25 in
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Gauge Range
- 8 AWG to 1 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll500
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72; i7100; i5100
Quantity per Row2
Ribbon SeriesR6600
Shrink Ratio3:1
Suggested Ribbon SeriesR4300; R4502S; R5000; R6600; R6700
Total Quantity1000
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)12.7 mm
Dimensions (Metric)19.05 mm W x 21.60 mm H
Height (in/ft/yd)0.851 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.45 in
Maximum Wire Gauge1 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)4.75 mm
Recovered Diameter (in/ft/yd)0.187 in
Roll Width (in/ft/yd)1.5 in
Size - Width (mm)19.05 mm
Sleeve Size (mm/cm/m)12.7 mm Dia x 19.1 mm W
Sleeve Width (mm/cm/m)19.1 mm
Vertical Repeat (mm)31.75 mm
Wire Diameter Range0.187 in to 0.45 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
