Nvent Hoffman PF1060 Front/Rear Plinths 100x598x63mm Umbra Gray Mild Steel
Nvent Hoffman PF1060 Front/Rear Plinths 100x598x63mm Umbra Gray Mild Steel
- MPN: PF1060
- UPC: 783510525644
- PPN: HOF-PF1060
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$289.69/ EA
Description

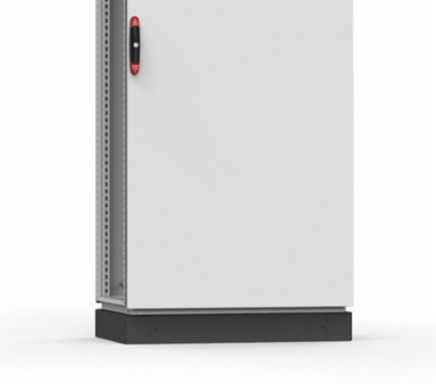

Front/Rear Plinths, PF allow cabling without any restrictions and creates extra space under the enclosure. This Front/Rear Plinths, PF, PF1060 item measures 100x598x63mm with a material of Zinc Plated, Mild Steel, color Umbra Gray.
Features
- Description: Front and rear plinth sections. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. The side panels PS are to be ordered separately. Produced in 100 mm and 200 mm heights. 200 mm high plinths are delivered with a rear cover for cabling that consists of two removable panels 100 mm high. The front cover is a one piece panel of 200 mm high. All panels have double returns on each side for added strength.
- Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
- Finish: RAL 7022 structured powder coating.
- Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel (2 rear panels for 200 mm high plinths) with mounting accessories. Mounting accessories for side panels PS or transversal profiles PCP.
- Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Works With
- IEC
- Product Family
- Free-Standing
- Color Code
- RAL 7022
- Package Quantity
- 1
- Material
- Mild Steel
- Color
- RAL 7022 Umbra Gray
- Consist of
- Front/Rear Plinths; Mounting Components and Instruction Manual
Height (H)100
Depth (D)63
Enclosure MaterialMild Steel
FinishPowder Coated
Thickness (T)1.5
Weight2.1
Size3.94 x 23.54 x 2.46 inch
Construction16 gauge
