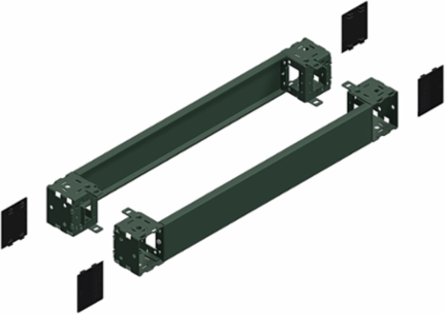

Electrical Enclosure Plinth 1000mm Width, 100mm Height, IK10, IP30
Schneider Electric

Schneider Electric NSYSPF10100 Electrical Enclosure Plinth 1000mm Width, 100mm Height, IK10, IP30

  • MPN: NSYSPF10100
  • PPN: SCH-NSYSPF10100
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $119.03

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 1000 mm. Multi-purpose enclosure accessory. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.

    Documentation & Downloads

    Specifications

    Key Specifications

    Height
    3.94 in
    Country of OriginBrazil, Costa Rica, Spain, France, India, Mexico, Tunisia

    Physical Attributes

    Color
    Gray RAL 7022)

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
    Carbon Footprint Of The Distribution Phase [A4]
    1.056238091, 1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    1.21665442, 1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    0 kg CO2 eq., 0
    Local Publishable Date
    2025-07-10
    Stocking Flag
    N
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1912
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Fixing Mode
    by fixing element - on structure
    Permanent Permissible Load
    1300 kg
    Product Or Component Type
    plinth front
    Returnability
    Yes
    Surface Finish
    epoxy-polyester powder
    Total Lifecycle Carbon Footprint
    39 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    100 mm
    Width Nominal
    nominal: 1000 mm
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Enclosure Nominal Dimensions-, -
    Carbon Footprint Of The End-of-life Phase [C1 To C4]13 kg CO2 eq., 12.8991008
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 23.84166502
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Energy Efficiency OptimizedFalse
    Mounting Supportplinth side panels
    Product AvailabilityStock - Normally stocked in distribution facility
    RangePanelSeT
    Software Versionv5.9.4
    Sustainable PackagingNo
    Pep CodeENVPEP1109023EN
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Recyclability Potential, In %98
    Height Useful100 mm
    Accessory / Separate Part Categoryenclosure accessory
    Package Weight(Lbs)5.800 kg
    Take-backNo

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Silicon Free
    No
    Environmental Disclosure
    ENVPEP1109023EN
    Ip Degree Of Protection
    IP20 complete plinth)
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1109023EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint39.01365833
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    plinth front

    ETIM

    ETIM 8
    EC000721
    ETIM 9EC000721

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
