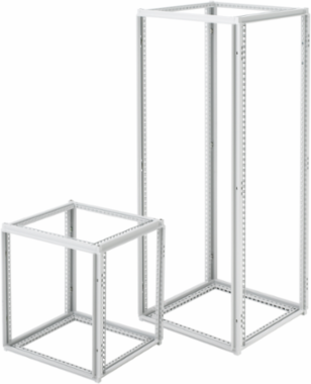

Nvent Hoffman PF18105HF ProLine EMC Frame 1800 x 1000 x 500 mm, Steel, IP55, 38U Rack Space
Nvent Hoffman PF18105HF ProLine EMC Frame 1800 x 1000 x 500 mm, Steel, IP55, 38U Rack Space
- MPN: PF18105HF
- UPC: 783510103798
- PPN: HOF-PF18105HF
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2773.08/ EA
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- Plated finish for corrosion resistance and effective cover grounding
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Product Family
- ProLine
- Max Rack Mounting Space
- 38
- Weight
- 126.1
- Thickness (T)
- 2.66
- Sub Brand
- ProLine
- Size
- 1800x1000x500mm
Height (H)1,800
Depth (D)500
Max Subpanel Size66.34 x 36.61
IP RatingIP55
FinishPlated
Works WithNEMA
MaterialSteel
