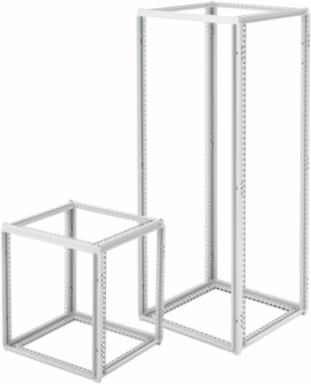

nVent Hoffman PF2278HF ProLine EMC Frame 2200x700x800mm, 47U Rack Space, IP55 Rating, Steel, Plated Finish

Description

Features

• 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
• Open roll-formed profile design affords complete surface corrosion protection and assembly access
• Plated finish for corrosion resistance and effective cover grounding
• Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
• Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
• Integral frame channels support the full weight of the mounting subpanel (sold separately)
• Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
• Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
• Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
