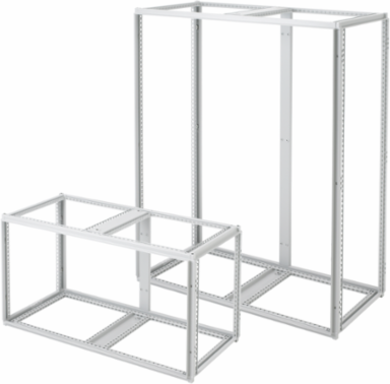

Nvent Hoffman PF18166 ProLine Double-Bay Frame 1800x1600x600mm, Steel, Powder Coated, IP55, 143 lbs
Nvent Hoffman PF18166 ProLine Double-Bay Frame 1800x1600x600mm, Steel, Powder Coated, IP55, 143 lbs
- MPN: PF18166
- UPC: 783510957506
- PPN: HOF-PF18166
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2144.15/ EA
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Welded rear centerpost and cross members to facilitate population in either enclosure bay; no front center post allowing full access for subpanel mounting
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications; optional center upright to accomplish mounting in individual bays sold separately
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,600
- Product Family
- ProLine
- Max Rack Mounting Space
- 38
- Weight
- 143
- Finish
- Powder Coated
- Works With
- NEMA
- Material
- Steel
- Color
- LtGray
Height (H)1,800
Depth (D)600
Max Subpanel Size66.34 x 60.24
IP RatingIP55
Color CodeRAL 7035
Thickness (T)2.66
Sub BrandProLine
Size1800x1600x600mm
