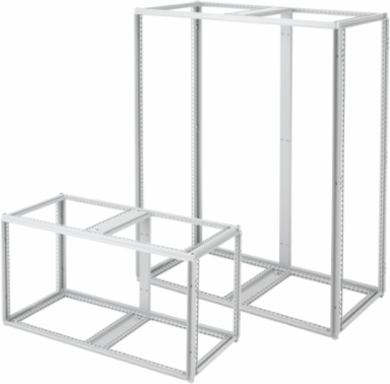

nVent Hoffman PF20168 ProLine Double-Bay Frame 2000x1600x800mm, 170 lbs, Steel, IP55

ProLine Double-Bay Frame 2000x1600x800mm, 170 lbs, Steel, IP55
  • MPN: PF20168
  • UPC: 783510959807
  • PPN: HOF-PF20168
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3215.69/ EA

Description

ProLine Double-Bay Frame 2000x1600x800mm, 170 lbs, Steel, IP55

Features

  • 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
  • Open roll-formed profile design affords complete surface corrosion protection and assembly access
  • RAL 7035 textured light-gray polyester powder paint finish
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Welded rear centerpost and cross members to facilitate population in either enclosure bay; no front center post allowing full access for subpanel mounting
  • Integral frame channels support the full weight of the mounting subpanel (sold separately)
  • Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
  • Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications; optional center upright to accomplish mounting in individual bays sold separately
  • Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
1,600
Product Family
ProLine
Max Rack Mounting Space
42
Weight
170
Finish
Powder Coated
Works With
NEMA
Material
Steel
Color
LtGray
Height (H)2,000
Depth (D)800
Max Subpanel Size74.21 x 60.24
IP RatingIP55
Color CodeRAL 7035
Thickness (T)12
Sub BrandProLine
Size2000x1600x800mm
