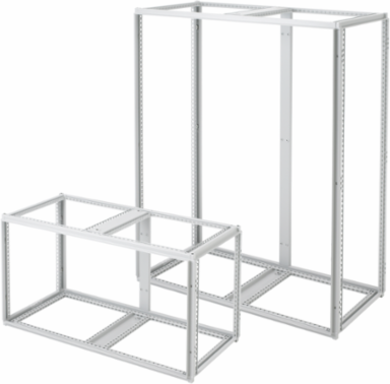

Nvent Hoffman PF7126 Double-Bay Frames 700x1200x600mm Steel Powder Coated, 13U x 2 Rack Space, Type 12
Nvent Hoffman PF7126 Double-Bay Frames 700x1200x600mm Steel Powder Coated, 13U x 2 Rack Space, Type 12
- MPN: PF7126
- UPC: 783510953201
- PPN: HOF-PF7126
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1835.08/ EA
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Welded rear centerpost and cross members to facilitate population in either enclosure bay; no front center post allowing full access for subpanel mounting
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications; optional center upright to accomplish mounting in individual bays sold separately
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,200
- Product Family
- ProLine
- Max Rack Mounting Space
- 13
- Weight
- 108.9
- Finish
- Powder Coated
- Works With
- NEMA
- Material
- Steel
- Color
- LtGray
Height (H)700
Depth (D)600
Max Subpanel Size23.03 x 44.49
IP RatingIP55
Color CodeRAL 7035
Thickness (T)2.66
Sub BrandProLine
Size700x1200x600mm
