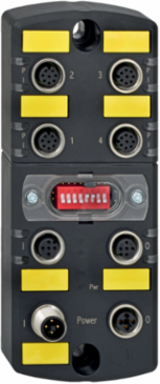

Schmersal 103013574 PFB-SD-4M12-SD Field Box, IP67, M12 Connector, 4 Safety Switchgears
- MPN: 103013574
- PPN: SCM-103013574
CAD
$403.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PFB-SD-4M12-SD Field Box, IP67, M12 Connector, 4 Safety Switchgears
Features
- For SD-Interface devices
- Passive field box for series-wiring
- For devices with M12 Connector, 8-pole
- For up to 4 safety switchgears
- Fuse protected device ports
- Heavy duty version for field installation
- Protection class IP67
Documentation & Downloads
Specifications
Key Specifications
- Width
- 63 mm
- Depth
- 36.1 mm
Height156.6 mm
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 63 mm
- Depth
- 36.1 mm
Height156.6 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
General data - Features
- Integral system diagnostics, status
- Yes
Number of LEDs9
General data
- Standards
- EN IEC 62061 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
- Gross weight
- 443 g
Enclosure materialThermoplastic, Polyamide PA 6 GF
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -40 °C
- Relative humidity, minimum
- 10 %
- Note (Relative humidity)
- non-condensing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-20 ... +65 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm
Protection classIII
Mechanical data - Connection technique
- Termination
- M12 Connector socket/connector
Approvals - Standards
- Certificates
- cULus
