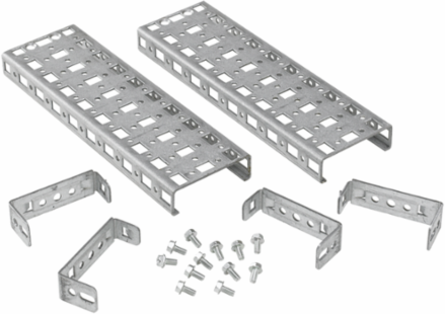

Nvent Hoffman PGH1S10 ProLine Grid Straps, 1000mm, Galvanized Steel, 4.5 lbs Weight
Nvent Hoffman PGH1S10 ProLine Grid Straps, 1000mm, Galvanized Steel, 4.5 lbs Weight
- MPN: PGH1S10
- UPC: 783510468699
- PPN: HOF-PGH1S10
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$182.00/ EA
Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 900
- Hole Pattern
- One Row
- Finish
- Galvanized
- Works With
- NEMA
- Material
- Steel
Product FamilyProLine
Fits Frame Depth1,000
Weight4.5
Thickness (T)1.9
Sub BrandProLine
