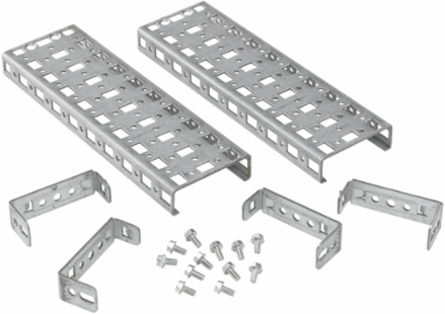

nVent Hoffman PGH1S17 ProLine Grid Straps 1-Row 1700mm Galvanized Steel 1.9mm Thickness
nVent Hoffman PGH1S17 ProLine Grid Straps 1-Row 1700mm Galvanized Steel 1.9mm Thickness
- MPN: PGH1S17
- UPC: 783510905309
- PPN: HOF-PGH1S17
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$241.23/ EA
Description
ProLine Grid Straps 1-Row 1700mm Galvanized Steel 1.9mm Thickness
Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 1,600
- Weight
- 8
- Thickness (T)
- 14
- Sub Brand
- ProLine
- Size
- 1542x25mm
Product FamilyProLine
Hole PatternOne Row
FinishGalvanized
Works WithNEMA
MaterialSteel
