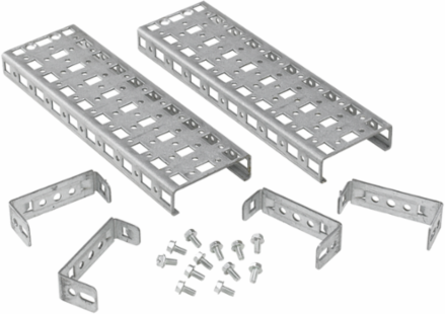

nVent Hoffman PGH1S9 Grid Straps for ProLine Frames 900mm, 14 Gauge Conductive Steel, Fits 800mm Width
- MPN: PGH1S9
- UPC: 783510904807
- PPN: HOF-PGH1S9
- UNSPSC: 39121321
CAD
$192.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Grid Straps for ProLine Frames 900mm, 14 Gauge Conductive Steel, Fits 800mm Width
Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Fits Frame Width | 800 |
| Hole Pattern | One Row |
| Finish | Galvanized |
| Works With | NEMA |
| Material | Steel |
| Product Family | ProLine |
|---|---|
| Fits Frame Depth | 900 |
| Weight | 4 |
| Thickness (T) | 14 |
| Sub Brand | ProLine |
| Size | 742x25mm |
