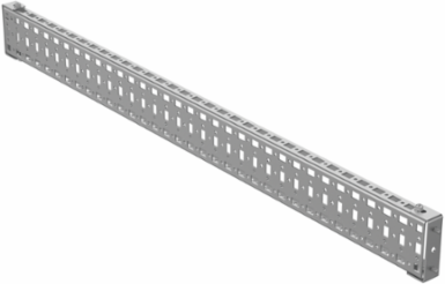

nVent Hoffman PGH3S8 Grid Straps for ProLine Frames 3-Row, 800mm, Galvanized, Mild Steel
nVent Hoffman PGH3S8 Grid Straps for ProLine Frames 3-Row, 800mm, Galvanized, Mild Steel
- MPN: PGH3S8
- UPC: 783510905804
- PPN: HOF-PGH3S8
- UNSPSC: 39121321
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$219.69/ EA
Description
Grid Straps for ProLine Frames 3-Row, 800mm, Galvanized, Mild Steel
Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 700
- Hole Pattern
- Three Rows
- Finish
- Galvanized
- Works With
- NEMA
- Material
- Steel
Product FamilyProLine
Fits Frame Depth800
Weight4.8
Thickness (T)14
Sub BrandProLine
Size642x75mm
