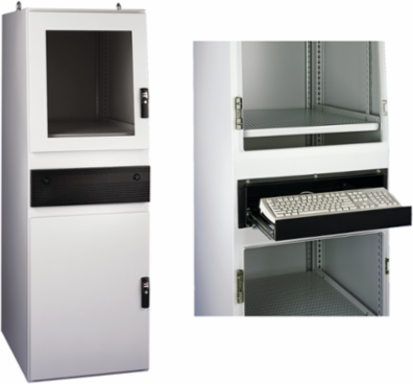

nVent Hoffman PGLD1666CWS ProLine Gold Series Computer Workstation Type 12, 1600x600x600, Lt Gray, Steel
nVent Hoffman PGLD1666CWS ProLine Gold Series Computer Workstation Type 12, 1600x600x600, Lt Gray, Steel
- MPN: PGLD1666CWS
- UPC: 783510102654
- PPN: HOF-PGLD1666CWS
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProLine Gold Series Computer Workstation is an off-the-shelf solution protecting computer systems. This ProLine Gold Series Computer Workstation Type 12, PGLD1666CWS item measures 1600x600x600mm with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket on all doors and covers
- Smoke gray 0.25-in.-thick polycarbonate window on upper front door
- Quarter-turn latches on upper front door for 1400-mm high cabinets
- ProLine latching system and key locking swing door handles on upper front door for 1600- and 1800-mm high cabinets
- Solid lower front and full rear doors with key locking swing door handles
- Internal rails facilitate mounting of ProLine internal components
- Options include solid upper front door and solid front and rear covers with screw fasteners
- Full rear opening provides maximum mounting space and easy access to interior components
- Optional partial subpanel
- Hinges on bottom for 1400-mm enclosures
- Solid center post on front for 1200-mm enclosures
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Nominal Height
- 1,600
- Top Door Opening Height
- 17.17
- Bottom Door Opening Height
- 29.09
- Rear Door Opening Height
- 59.49
- IP Rating
- IP55
- Sub Brand
- ProLine
- Size
- 1600x600x600mm
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,600
Depth (D)600
Product FamilyProLine
Color CodeRAL 7035
Nominal Width600
Top Door Opening Width21.1
Bottom Door Opening Width21.1
Rear Door Opening Width21.1
Weight232
MaterialSteel
ColorLtGray
