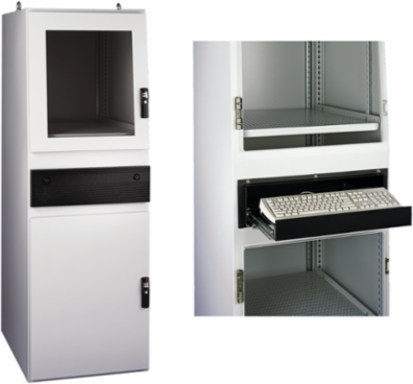

nVent Hoffman PGLD1686CWS ProLine Gold Series Computer Workstation Type 12, 1600x800x600, Lt Gray, Steel
- MPN: PGLD1686CWS
- UPC: 783510128012
- PPN: HOF-PGLD1686CWS
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine Gold Series Computer Workstation is an off-the-shelf solution protecting computer systems. This ProLine Gold Series Computer Workstation Type 12, PGLD1686CWS item measures 1600x800x600mm with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket on all doors and covers
- Smoke gray 0.25-in.-thick polycarbonate window on upper front door
- Quarter-turn latches on upper front door for 1400-mm high cabinets
- ProLine latching system and key locking swing door handles on upper front door for 1600- and 1800-mm high cabinets
- Solid lower front and full rear doors with key locking swing door handles
- Internal rails facilitate mounting of ProLine internal components
- Options include solid upper front door and solid front and rear covers with screw fasteners
- Full rear opening provides maximum mounting space and easy access to interior components
- Optional partial subpanel
- Hinges on bottom for 1400-mm enclosures
- Solid center post on front for 1200-mm enclosures
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 808
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Nominal Height
- 1,600
- Nominal Depth
- 600
- Top Door Opening Width
- 28.98
- Bottom Door Opening Width
- 28.98
- Rear Door Opening Width
- 28.98
- Weight
- 287
- Material
- Steel
- Color
- LtGray
Height (H)1,583
Depth (D)542
Product FamilyProLine
Color CodeRAL 7035
Nominal Width800
Top Door Opening Height17.17
Bottom Door Opening Height29.09
Rear Door Opening Height59.49
IP RatingIP55
Sub BrandProLine
Size1600x800x600mm
NEMA Rating12 Indoor, dust-resistant
