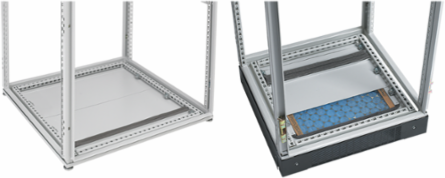

Nvent Hoffman PGP105AHF ProLine Gland Plates, fits 1000x500mm, EMC
Nvent Hoffman PGP105AHF ProLine Gland Plates, fits 1000x500mm, EMC
- MPN: PGP105AHF
- UPC: 783510289294
- PPN: HOF-PGP105AHF
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$281.08/ EA
Features
- Solid Gland Plate and EMC Gland Plate are accessories to 100- mm Solid Base, 100-mm/200-mm Plinth Base, Mobile Base and Transportation Base. These gland plates can be used without a base if casters, levelers or frame feet are installed.
- Solid Gland Plate: the Solid Gland Plate can be used with all ProLine subpanels or rack angles. The gland plate consists of a base mounting surface and two adjustable foam-gasketed plates that permit cable entry. The plate can be rotated 180 degrees for front or rear cable entry.
- EMC Gland Plate: This gland plate can be used with subpanels or rack angles. Gland plate consists of a base mounting surface and two adjustable gland plates (both have a conductive coating) with conductive fabric-over-foam gasket for cable entry.
- Filtered (Vented) Gland Plate: Filtered Gland Plate is used only in conjunction with Vented Plinth Base Covers. The plate can be used with all ProLine subpanels or rack angles. It consists of a mounting base, three adjustable plates for cable entry, a filter and filter retaining rails. Manufactured from 16 gauge steel and finished with RAL 7035 textured light-gray polyester powder paint. Replacement filters available. EMC Gland Plate maintains a Type 1 rating.
- All hardware included
Specifications
Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 1,000
- Weight
- 21
- Color Code
- RAL 7035
- Thickness (T)
- 1.9
- Sub Brand
- ProLine
- Size
- fits 1000x500mm
Product FamilyProLine
Fits Frame Depth500
ColorLight Gray
FinishGalvanized
Works WithNEMA
MaterialSteel
